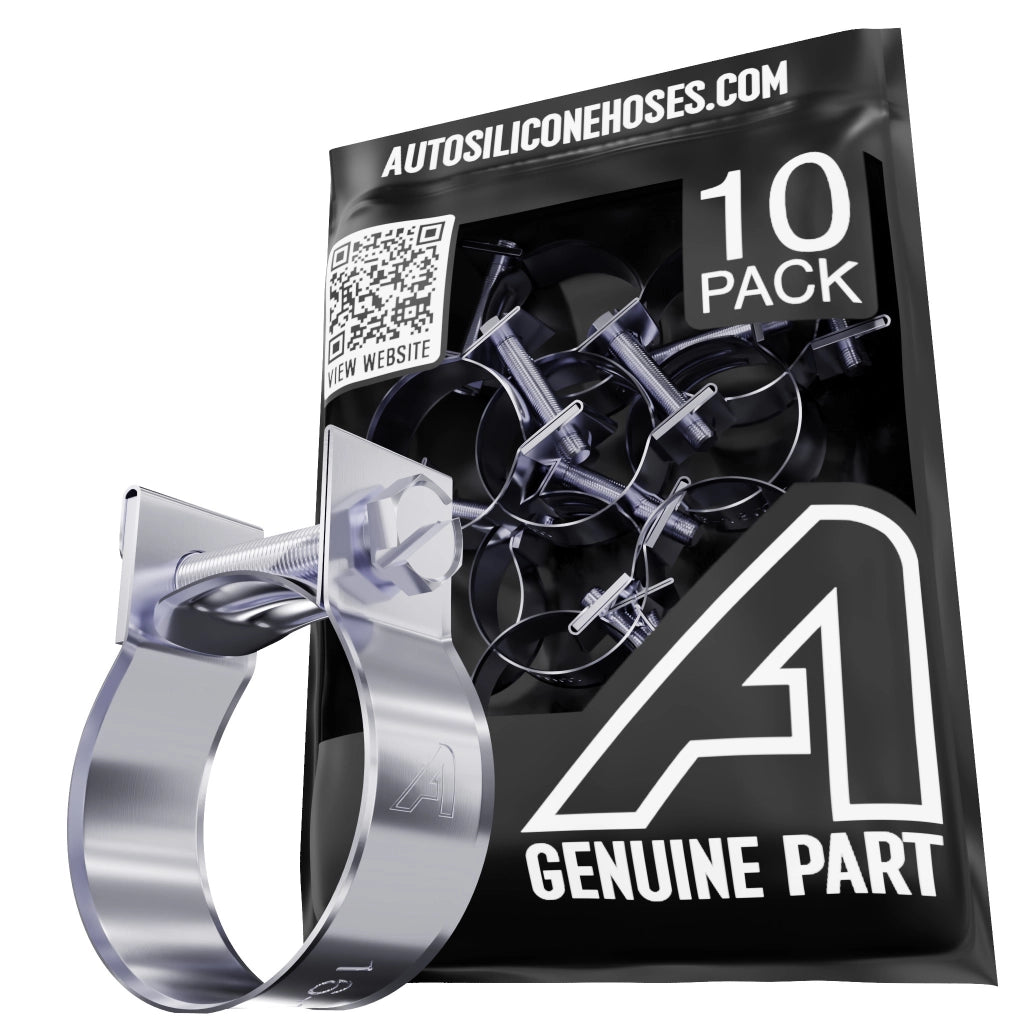

Mini Fuel Hose Clip - 10 Pack

Hex Head 9mm Band Width 0.6mm Thick

PMC007009-ASH#10

£3.80

Delivery/Collection

Collect from Silicone Hose UK

Orders can be collected once you receive your ready-to-collect email.

Address

Silicone Hose UK

HolmeBank Business Park, Station Road
Unit 5
Mirfield WF14 8NA
United Kingdom

Get Directions

Opening hours

Monday	07:00 – 19:00
Tuesday	07:00 – 19:00
Wednesday	07:00 – 18:00
Thursday	07:00 – 18:00
Friday	07:00 – 17:00
Saturday	07:00 – 13:00
Sunday	Closed

Bank holidays may affect our opening hours and delivery times.

Returns

It's OK to change your mind
Return within 30 days for a full refund*. Learn More

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

Mini Fuel Hose Clips are compact and reliable clamps designed for secure fastening of small-diameter fuel, oil, air, and water hoses. Manufactured in zinc-plated or stainless steel, these clips offer excellent durability, corrosion resistance, and long service life in demanding environments. Their precision-formed band with rolled edges prevents damage to hoses while providing a tight, leak-free seal under pressure. Designed for quick and easy installation, mini hose clips are widely used in automotive, marine, agricultural, and light industrial applications where space is limited and a secure connection is essential.

Key Features:

Material: Zinc plated (W1) or stainless steel (W4) for strength and corrosion resistance.
Operating Temperature: -60°C to +180°C (peak +190°C).
Clip Range: Available in sizes from 7–9 mm up to 16–18 mm.
Band Width: 9 mm.
Band Thickness: 0.6 mm.
Design: Compact worm-drive mechanism for precise tightening.
Applications: Fuel, oil, air, and water hoses in automotive, marine, and industrial systems.

The worm-drive tightening system allows for a strong, adjustable clamping force, reducing the risk of leaks and hose slippage. The 9 mm wide band and smooth rolled edges protect the hose from cutting or distortion during tightening, making them suitable for both rubber and silicone hoses. Available in corrosion-resistant stainless steel or cost-effective zinc-plated finishes, mini clips provide flexibility depending on the operating environment. Compact and versatile, they are ideal for confined spaces and smaller hose assemblies.

Applications include securing fuel lines, breather hoses, washer tubing, vacuum pipes, and small-bore coolant or oil lines. Mini Fuel Hose Clips are trusted by mechanics, engineers, and installers for their ease of use, compact design, and long-lasting sealing performance.

Specifications

Type: Mini Fuel Hose Clip
Colour: Silver
Standard: W1 / W4
Band Width: 9mm
Band Thickness: 0.6mm
Material: W1 / W4

Size Guide

Clip Range Diameter
7mm - 9mm
8mm - 10mm
9mm - 11mm
10mm - 12mm
11mm - 13mm
12mm - 14mm
13mm - 15mm
14mm - 16mm
15mm - 17mm
16mm - 18mm

Measurements are nominal and may vary slightly.

How to size a clip

1

Measure over the hose, not the pipe

A clip closes around the outside of the hose once the hose is already on its fitting. That outside diameter is the clip size — the bore the hose runs on is not.

2

Or work it out from the hose's own figures

If the hose is not to hand, take its internal diameter and add twice the wall thickness — both are listed in that hose's own Size Guide. A 19 mm bore silicone hose has a 4.5 mm wall, so it measures 28 mm across the outside.

3

Use vernier calipers, keep the largest reading

Set the outer jaws across the widest point of the assembled joint and rotate 60° between readings. Hose is soft and rarely perfectly round, so size to the biggest figure.

4

Pick the range that spans your figure

Aim for the middle of a clip's range rather than either end. Wound out near its limit a clip has little thread left to bite on; at the bottom of its range it may not open far enough to pass over the hose in the first place.

Size the clip to the hose OD, not the bore. A 19 mm hose does not take a 19 mm clip — with a 4.5 mm wall it measures about 28 mm across the outside. Every figure on this page is the outside diameter the clip closes on.

Construction

Material

Zinc plated (W1) or stainless steel (W4)

Strength and corrosion resistance

Design

Compact worm-drive mechanism

Precise tightening · -60°C to +180°C (peak +190°C)

How it's built

What it's made of.

Made from zinc plated (W1) or stainless steel (W4).

1

Material

Zinc plated (W1) or stainless steel (W4)

Strength and corrosion resistance

2

Design

Compact worm-drive mechanism

Precise tightening-60°C to +180°C (peak +190°C)

Product gallery

Frequently Asked Questions.

Answers to the questions we’re asked most about sizing, fitment and performance.

Still can't find your answer?

Contact Us

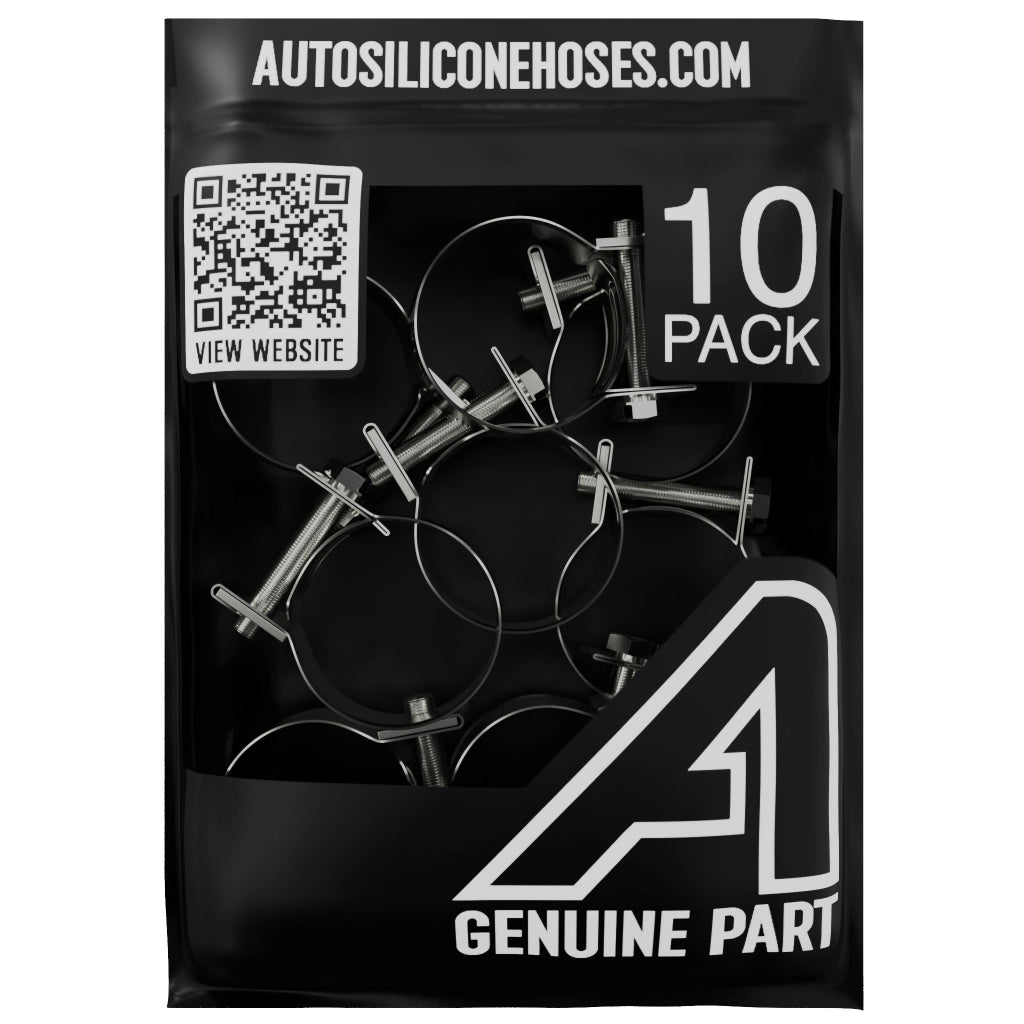

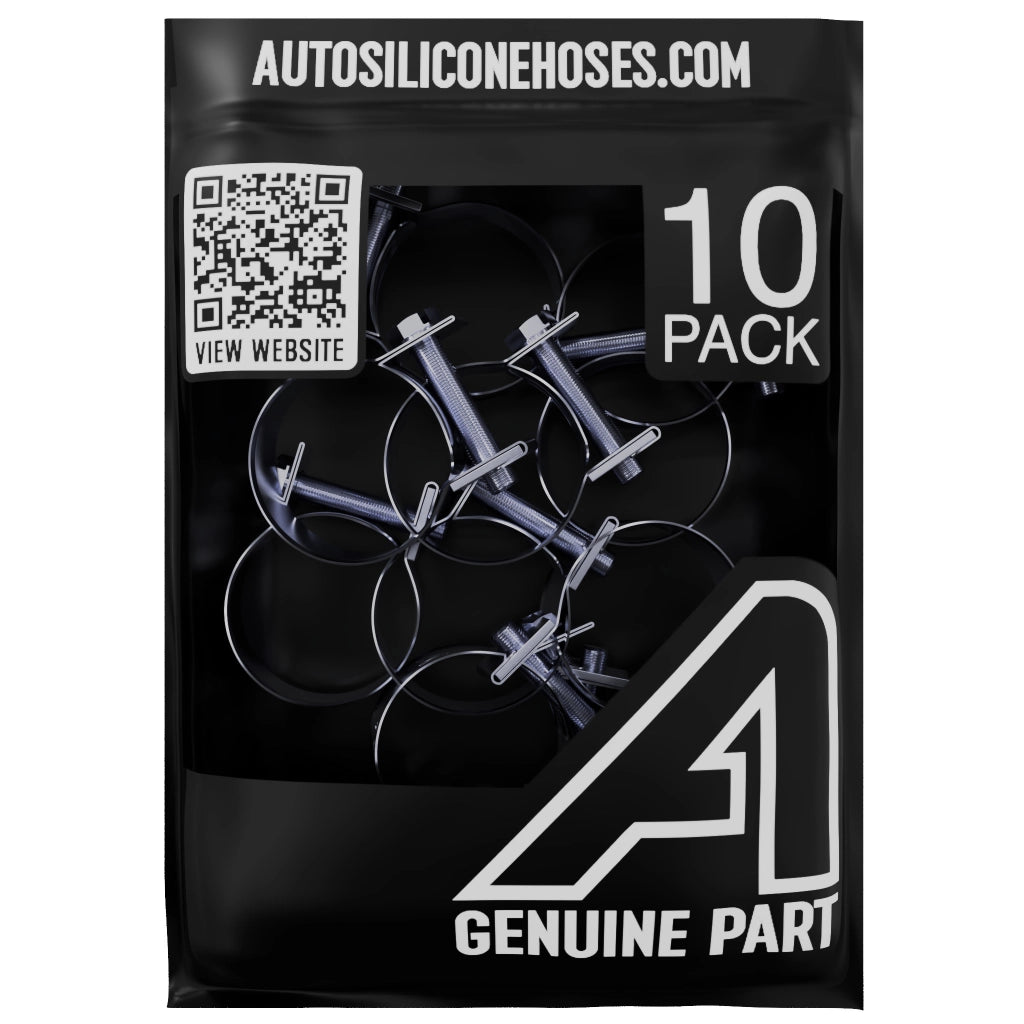

What is in the pack?

Ten mini worm drive clips, all the same size and material, for small bore fuel, oil, air and water hose. The band is 9mm wide and 0.6mm thick with rolled edges so it grips without cutting into the hose.

What sizes do you stock?

Clamping ranges from 7-9mm up to 16-18mm. Size to the outside diameter of the hose once it is pushed onto the pipe, not to the hose bore, and aim for the middle of the range rather than the extreme of it.

What is the difference between W1 and W4?

W1 is zinc plated steel and W4 is stainless. Use W4 for anything exposed to fuel, coolant, weather or road salt. W1 is the cheaper choice for dry indoor and enclosed work.

Why buy ten rather than singles?

Because a hose job is rarely one clip. Doing a fuel line, a breather run or a bank of small hoses in one go, ten of the same size works out cheaper and saves a second order when you find the one you did not plan for.

What temperature will it take?

-60C to +180C, with peaks to +190C. That covers engine bay work comfortably, including the heat soak a fuel line sees after shutdown.

How tight should it be?

Firm, not crushed. Compress the hose evenly against the pipe and stop - over-tightening a mini clip on soft hose causes more leaks than under-tightening. Re-check after the first heat cycle.
