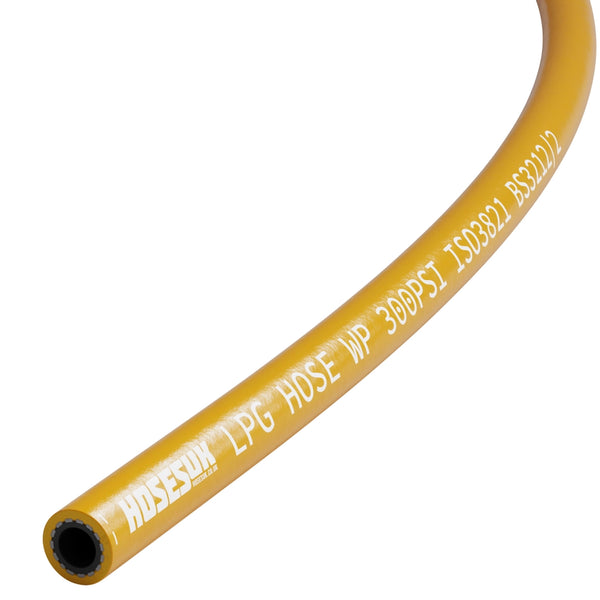

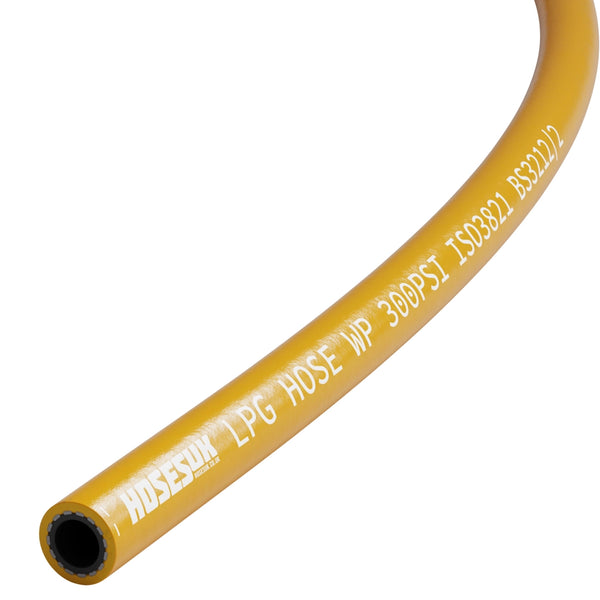

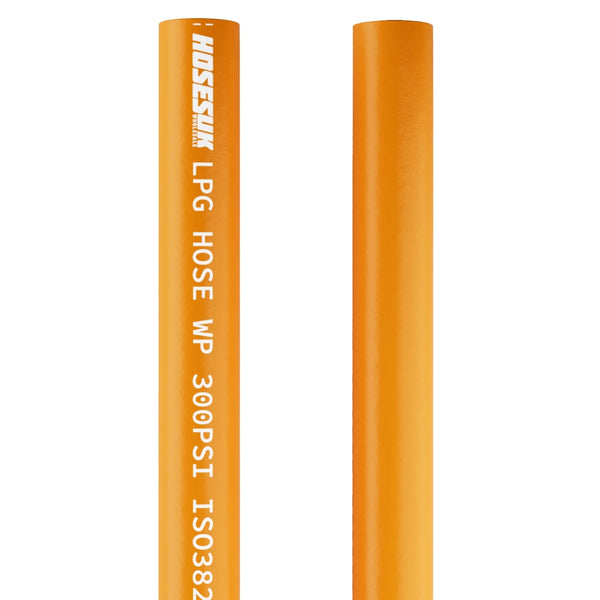

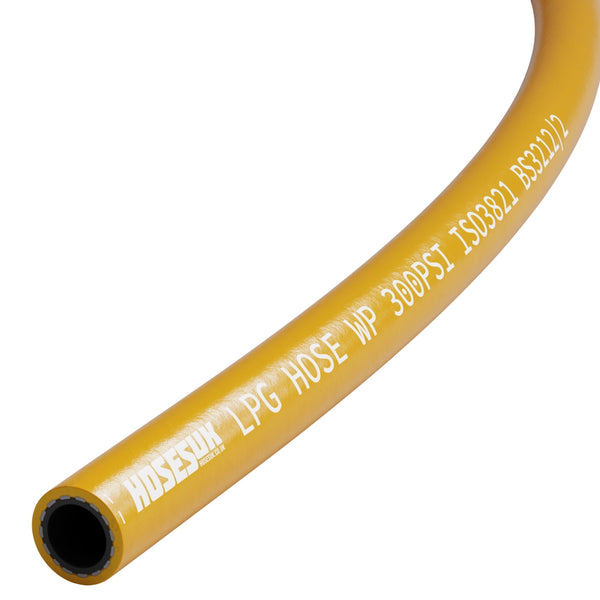

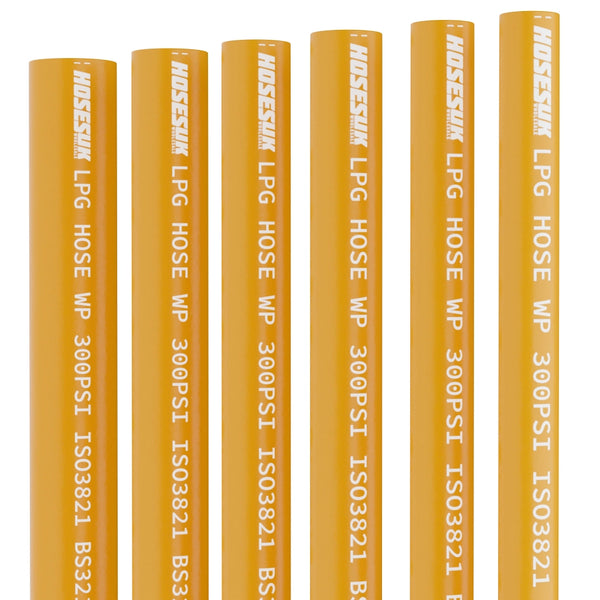

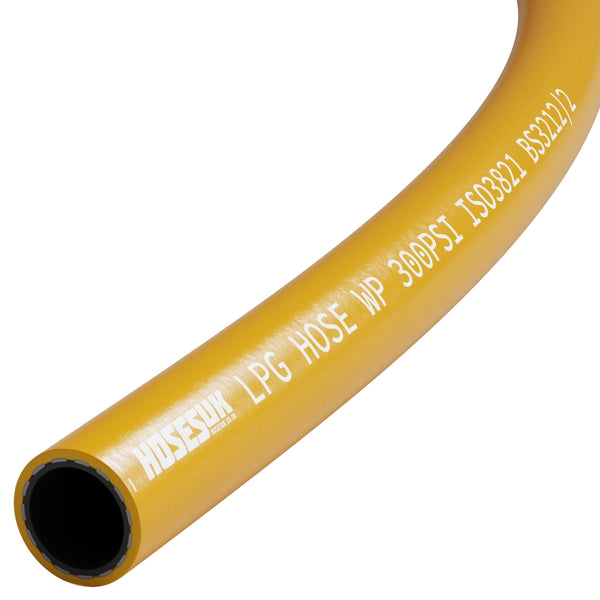

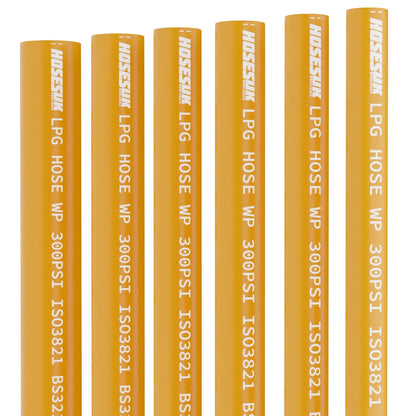

Rubber LPG Hose

High Pressure Extreme Flexibility Date Stamped

RLH005-ASH#1

£2.78

Delivery/Collection

Collect from Silicone Hose UK

Orders can be collected once you receive your ready-to-collect email.

Address

Silicone Hose UK

HolmeBank Business Park, Station Road
Unit 5
Mirfield WF14 8NA
United Kingdom

Get Directions

Opening hours

Monday	07:00 – 19:00
Tuesday	07:00 – 19:00
Wednesday	07:00 – 18:00
Thursday	07:00 – 18:00
Friday	07:00 – 17:00
Saturday	07:00 – 13:00
Sunday	Closed

Bank holidays may affect our opening hours and delivery times.

Returns

It's OK to change your mind
Return within 30 days for a full refund*. Learn More

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

Rubber LPG Hose is a high-performance, flexible gas hose engineered for the safe transfer of liquefied petroleum gas in industrial, commercial, and domestic systems. Constructed with a black oil-resistant synthetic rubber inner layer, reinforced with multiple high-tensile fabric plies, and finished with an orange weather-resistant synthetic rubber cover, the hose offers excellent strength, safety, and durability. Conforming to ISO 3821 and BS 3212/2 standards, Rubber LPG Hose ensures secure handling of LPG across a wide range of environments. With an operating temperature range from -20°C to +85°C (and peak resistance up to +100°C), it delivers consistent performance in both indoor and outdoor conditions.

Key Features:

Inner Layer: Black smooth oil-resistant synthetic rubber for gas compatibility.
Reinforcement: High-tensile fabric plies for pressure stability and safety.
Outer Layer: Orange weather-resistant synthetic rubber for durability in outdoor use.
Operating Temperature: -20°C to +85°C (short-term peak +100°C).
Working Pressure: 20 bar across all sizes.
Burst Pressure: 60 bar (3:1 safety factor).
Internal Diameter Range: 5 mm to 13 mm.
Wall Thickness: 3.5 mm to 4.0 mm depending on size.
Bending Radius: 72 mm to 126 mm depending on size.
Standard: ISO 3821 / BS 3212/2 compliant.

The robust multi-ply fabric reinforcement provides excellent strength and dimensional stability under working pressure, while the oil-resistant inner tube ensures compatibility with LPG and related hydrocarbon gases. The smooth bore supports steady flow with minimal resistance, and the bright orange outer layer enhances visibility while resisting abrasion, weathering, and UV exposure. With burst pressures three times higher than its rated working capacity, Rubber LPG Hose offers a dependable safety margin for demanding gas transfer applications.

Applications include LPG supply lines for heating systems, gas burners, mobile catering, caravans, space heaters, agricultural dryers, roofing torches, and general maintenance equipment. Rubber LPG Hose is widely used across industrial, commercial, and agricultural sectors where a strong, flexible, and weather-resistant gas hose is essential for safe and reliable LPG handling.

Specifications

Type: LPG Hose
Colour: Orange
Standard: ISO3821
Working Pressure: 20bar
Bursting Pressure: 60bar
Coil Length: 100m

Size Guide

Inside Diametermm	Outside Diametermm	Wall Thicknessmm	Bending Radiusmm	Coil Weightkg
5	12	3.5	72	17
6	13	3.5	78	18
8	15	3.5	90	20
10	17	3.5	102	24.5
13	21	4	126	32

Measurements are nominal and may vary slightly.

How to measure ID

Measure the pipe, not the old hose

Heat and age make a used hose swell and go out of round. Take your reading across the metal outlet the hose slides onto — that measurement is your ID.

Use vernier calipers

Set the outer jaws across the widest point of the pipe. A tape measure round a curve reads low by a millimetre or two — enough to buy the wrong size.

Take three readings, keep the largest

Rotate 60° between each. If they disagree the pipe is oval; size to the biggest figure so the hose still seals.

Round to the nearest listed bore

Never go up: a bore wider than the fitting will not grip, whatever the hose is made of. If you land between listed sizes take the smaller bore, and secure it with a clip.

Order by ID, always. Every hose on this site is listed by internal diameter. OD is given for clearance only — it changes with wall thickness and ply count, so it is never the ordering size. On reducers, quote both ends, largest first.

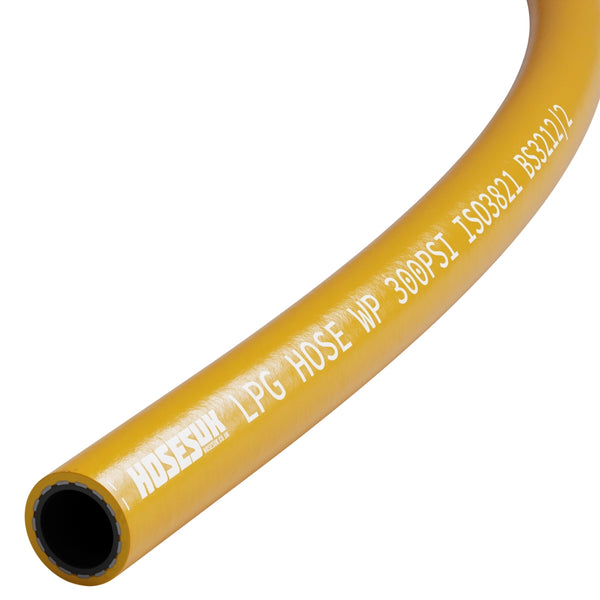

Construction

1 · Outer cover

Orange weather-resistant synthetic rubber

Durability in outdoor use

2 · Reinforcement

High-tensile fabric plies

Pressure stability and safety · 20 bar across all sizes · 60 bar (3:1 safety factor)

3 · Inner liner

Black smooth oil-resistant synthetic rubber

Gas compatibility · -20°C to +85°C (short-term peak +100°C)

Conforms to ISO 3821 / BS 3212/2.

Rubber LPG Hose

High Pressure Extreme Flexibility Date Stamped

Product gallery

Gas and air. Twenty bar.

High-pressure rubber line, certified to standard and made to stay flexible.

INTERNAL DIAMETERS

5mm to 13mm

RATED

−20°C to +85°C

WORKING PRESSURE

20 bar across all sizes

BUILT TO

ISO 3821

SOLD BY

The metre

Frequently Asked Questions.

Answers to the questions we’re asked most about sizing, fitment and performance.

Still can't find your answer?

What is it used for?

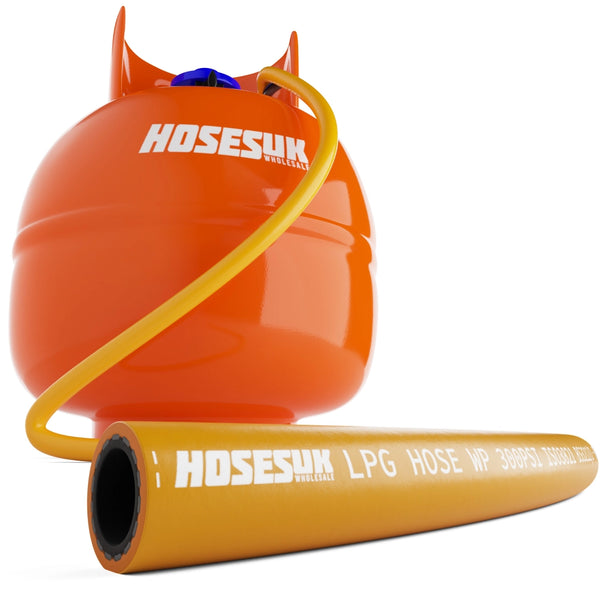

Carrying liquefied petroleum gas from a cylinder or tank to an appliance - patio heaters, barbecues, catering equipment, caravans and motorhomes, plant and industrial burners.

What size and length do I order?

Order by internal diameter, matched to the outside diameter of the pipe stub or spigot it slides over. Measure the pipe with vernier callipers rather than the old hose, which stretches in service and reads large. Available in internal diameters from 5mm to 13mm, lengths from 1 Metre to 100 Metres (Full Coil). Full coils work out considerably better value per metre than cut lengths.

What standard is it built to?

It is manufactured to ISO 3821. Buying to a recognised standard matters here - it means the construction, pressure rating and performance have been benchmarked rather than simply described.

Why is it date stamped?

Because LPG hose degrades with age even when it looks sound. The stamp tells you when it was made and therefore when it is due for replacement - commonly five years, but check the appliance manufacturer's requirement. No legible date means replace it now.

How do I check for a leak?

Brush washing-up liquid and water over every joint with the gas on and the appliance off. Bubbles mean a leak. Never test with a flame. If you find one, turn off at the cylinder, do not operate electrical switches, ventilate the area and do not use the appliance until it is fixed.

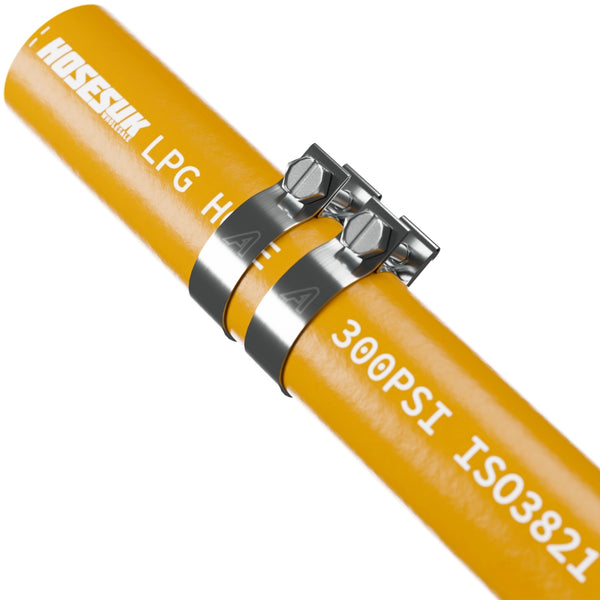

How should it be secured?

Proper gas hose clips at each end, positioned squarely over the nozzle - never rely on a push fit. Then leak-test every joint with soapy water before use.
