Braided Fuel Hose

4 products

Clear all

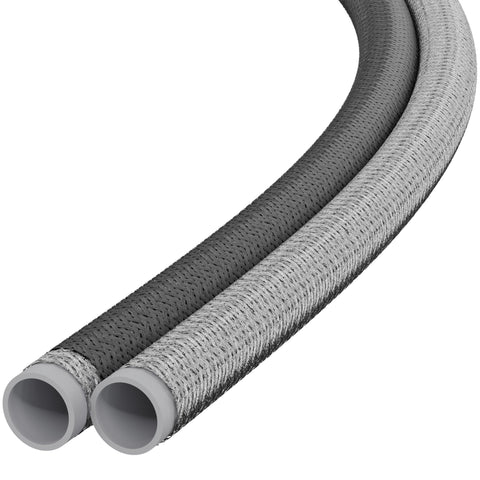

Braided Fuel Hose

Our Braided Fuel Hoses collection combines exceptional durability, flexibility, and safety, designed to meet the high demands of fuel systems in automotive, industrial, and performance applications. Featuring a robust braid reinforcement, these hoses offer superior resistance to abrasion, pressure, and chemicals, ensuring long-lasting performance even under harsh conditions.

Constructed with high-quality synthetic materials, our braided fuel hoses are engineered to handle the toughest environments, from fuel lines and tank connections to engine cooling and hydraulic systems. The braided outer layer provides added strength and protection, while the inner liner ensures optimal fluid flow without compromising on safety.

Ideal for a wide range of fuel types, including gasoline, diesel, and biofuels, these hoses deliver secure and leak-free operation, preventing fuel contamination and ensuring system integrity. Whether for automotive, industrial, or performance use, our Braided Fuel Hoses collection is the trusted solution for reliable, high-performance fuel delivery.

What braided fuel hoses do you stock?
AN6 PTFE lined stainless steel braided hose in bare stainless and black nylon covered finishes; rubber stainless steel overbraid hose to SAE J30 R6 in 6mm, 8mm, 10mm and 13mm; and rubber cotton braided fuel hose to DIN 73379 Type B in 3mm to 12mm.

What is PTFE lined hose and when do I need it?
It has a PTFE inner tube inside the braid, which is chemically inert and essentially impermeable. That makes it the choice for E85 and methanol, for high-pressure fuel injection systems, and anywhere fuel smell through the hose wall is a problem. It is stiffer than rubber-lined hose and needs proper AN fittings.

Stainless or black nylon covered?
Bare stainless braid is the traditional look and offers maximum abrasion protection - but it is abrasive itself and will saw through anything it rests against. The black nylon cover protects surrounding components and is kinder to your hands, at a slight cost in ultimate abrasion resistance.

What is cotton braided hose for?
Small-bore fuel and oil lines - carburettor feeds, injector returns, breathers - in 3mm to 12mm. It is built to DIN 73379 Type B with a rubber inner and external cotton braid, which gives flexibility and a period-correct appearance that suits classic and restoration work.

Can I use ordinary hose clips on braided hose?
Not on the braid alone. A worm drive clip bites into the stainless strands and can cut them. Stainless overbraid and PTFE hose are designed to terminate in a proper AN or crimped fitting that grips evenly all the way round. Cotton braided hose does take conventional clips.

How do I cut stainless braided hose?
Wrap the cut area tightly in tape, cut through the tape with a sharp cut-off wheel or proper hose shears, then remove the tape. That stops the braid fraying and unravelling, which makes fitting the hose end far easier - and considerably safer on your hands.

  • Questions about Braided Fuel Hose?

    Ask our team

  • Need something bespoke?

    View our custom hose guide.
