135 Degree Silicone Elbow Hose

Name: 135 Degree Silicone Elbow Hose
Brand: Auto Silicone Hoses
SKU: SSE135006K-ASH
Price: 7.1 GBP
Availability: InStock
Rating: 5.0 (1 reviews)

SSE135006K-ASH

£7.10

Delivery/Collection

Collect from Silicone Hose UK

Orders can be collected once you receive your ready-to-collect email.

Address

Silicone Hose UK

HolmeBank Business Park, Station Road
Unit 5
Mirfield WF14 8NA
United Kingdom

Get Directions

Opening hours

Monday	07:00 – 19:00
Tuesday	07:00 – 19:00
Wednesday	07:00 – 18:00
Thursday	07:00 – 18:00
Friday	07:00 – 17:00
Saturday	07:00 – 13:00
Sunday	Closed

Bank holidays may affect our opening hours and delivery times.

Returns

It's OK to change your mind
Return within 30 days for a full refund*. Learn More

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

Silicone 135° Elbow Hose is a versatile, heat-resistant hose designed for coolant, air, and fluid transfer in demanding automotive, marine, and industrial environments. Constructed with a smooth extruded silicone compound inner layer, reinforced by strong polyester braids, and finished with a durable silicone outer layer, this hose delivers excellent flexibility, pressure stability, and resilience. The 135-degree bend with 100 mm leg lengths allows efficient routing in confined or offset systems, reducing the need for additional fittings and couplers. Built to SAE J20 R3 standards, the multi-ply silicone elbow performs reliably from -50°C to +250°C, offering long service life under conditions of thermal cycling, vibration, and continuous pressure. Available in a wide range of diameters from 6.5 mm up to 102 mm, silicone 135° elbows provide dependable performance across multiple fluid handling applications.

Key Features:

Inner Layer: Smooth extruded silicone compound for durability and fluid compatibility.
Reinforcement: Polyester braids for strength and pressure resistance.
Outer Layer: High-quality silicone for heat, ozone, and abrasion resistance.
Construction: 3–4 ply with 100 mm leg lengths for secure installation.
Operating Temperature: -50°C to +250°C (peak +250°C).
Internal Diameter Range: 6.5 mm to 102 mm.
Working Pressure: From 12.33 bar (small bore) down to 2.8 bar (large bore).
Bursting Pressure: Typically 3x working pressure (up to 37 bar).
Bend Angle: 135° with extended 100 mm legs.
Standard: SAE J20 R3 compliant.

The polyester-reinforced multi-ply construction ensures excellent dimensional stability under pressure while maintaining flexibility for easy installation. With its wide operating temperature range, the silicone 135° elbow hose is resistant to cracking, ozone, and environmental degradation, making it suitable for high-stress applications. Its smooth bore reduces turbulence, supporting efficient fluid flow and reduced pressure loss. Burst pressures up to three times the working rating provide a strong safety margin, while the angled design helps optimise system layout in compact installations. These characteristics make the hose a reliable choice for high-performance cooling, air handling, and fluid transfer systems.

Applications include automotive coolant and air systems, turbocharger and intercooler piping, marine cooling circuits, industrial fluid handling, motorsport engineering, and agricultural machinery requiring angled hose routing. The silicone 135° elbow hose is also widely used in custom fabrication, heavy-duty maintenance, and high-performance projects where secure, durable, and heat-resistant connections are critical. Keywords: silicone 135-degree elbow hose, reinforced silicone coolant elbow, high-temperature silicone bend, SAE J20 R3 compliant hose, industrial fluid transfer elbow, angled silicone hose.

Specifications

Type: 135 Degree Elbow
Standard: SAEJ20R3
Each Leg Length: 100mm

Size Guide

Inside Diametermm	Outside Diametermm	Wall Thicknessmm	Working Pressurebar	Bursting Pressurebar	Bending Radiusmm	Number Of Ply
6.5	15.5	4.5	12.33	37	16	3
8	17	4.5	11.67	35	16	3
9.5	18.5	4.5	11.67	35	16	3
11	20	4.5	9	30	16	3
13	22	4.5	8.33	27	16	3
16	25	4.5	7.17	25	18	3
19	28	4.5	6.5	19.5	18	3
22	31	4.5	5.8	17.4	20	3
25	34	4.5	5.5	16	30	3
28	37	4.5	5.33	16	30	3
30	39	4.5	5.33	16	30	3
32	41	4.5	5.17	15.5	32	3
35	44	4.5	5	15	35	3
38	47	4.5	5	15	35	3
40	49	4.5	4.83	14.5	35	3
45	54	4.5	4.67	14	40	3
48	57	4.5	4.5	13.5	45	3
51	62	5.5	4.5	13.5	51	4
54	65	5.5	4.33	13	60	4
57	68	5.5	4.33	13	60	4
60	71	5.5	4.17	12.5	60	4
63	74	5.5	4	12	63	4
65	76	5.5	3.85	11.5	65	4
68	79	5.5	3.6	11	65	4
70	81	5.5	3.5	10.5	65	4
76	87	5.5	3.5	10.5	65	4
80	91	5.5	3.33	10	70	4
83	94	5.5	3.17	9.5	70	4
90	101	5.5	3	9	70	4
102	113	5.5	2.8	8.5	70	4

Measurements are nominal and may vary slightly.

How to measure ID

Measure the pipe, not the old hose

Heat and age make a used hose swell and go out of round. Take your reading across the metal outlet the hose slides onto — that measurement is your ID.

Use vernier calipers

Set the outer jaws across the widest point of the pipe. A tape measure round a curve reads low by a millimetre or two — enough to buy the wrong size.

Take three readings, keep the largest

Rotate 60° between each. If they disagree the pipe is oval; size to the biggest figure so the hose still seals.

Round to the nearest listed bore

Silicone stretches slightly. If you land between sizes, go down to the smaller bore for a tight seal — never up.

Order by ID, always. Every hose on this site is listed by internal diameter. OD is given for clearance only — it changes with wall thickness and ply count, so it is never the ordering size. On reducers, quote both ends, largest first.

Construction

1 · Outer cover

High-quality silicone

Heat, ozone, and abrasion resistance

2 · Reinforcement

Polyester braids

Strength and pressure resistance · From 12.33 bar (small bore) down to 2.8 bar (large bore) · Typically 3x working pressure (up to 37 bar)

3 · Inner liner

Smooth extruded silicone compound

Durability and fluid compatibility · -50°C to +250°C (peak +250°C)

Conforms to SAE J20 R3.

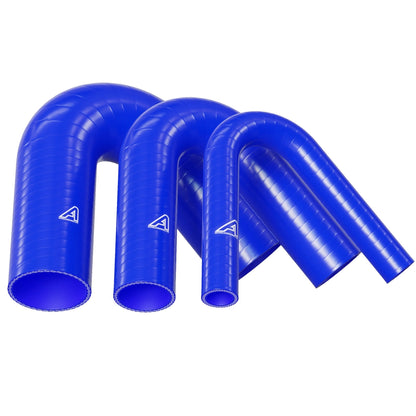

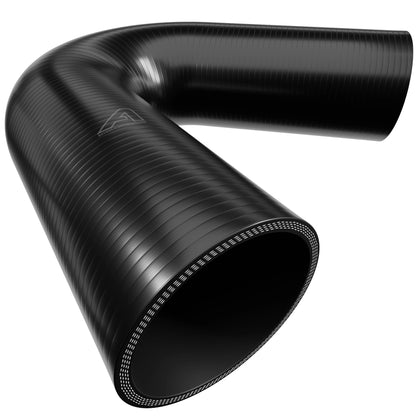

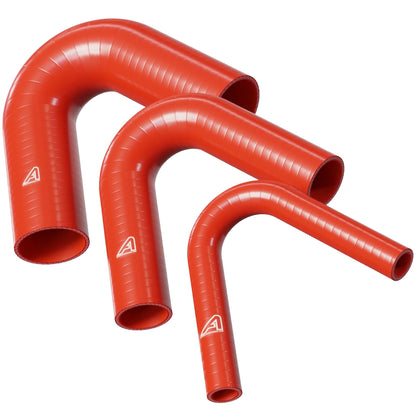

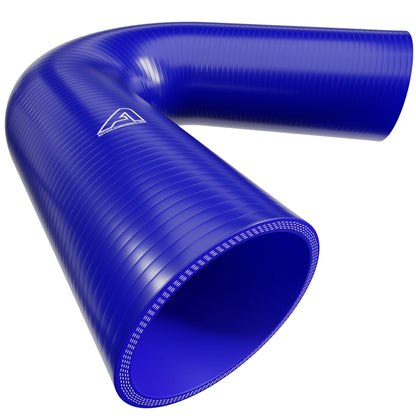

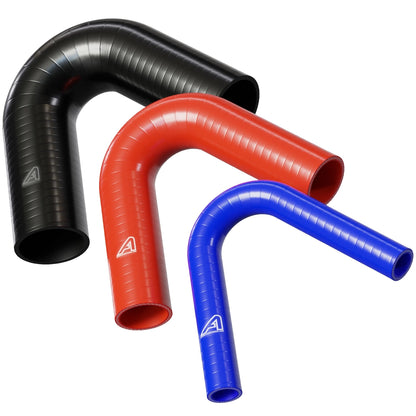

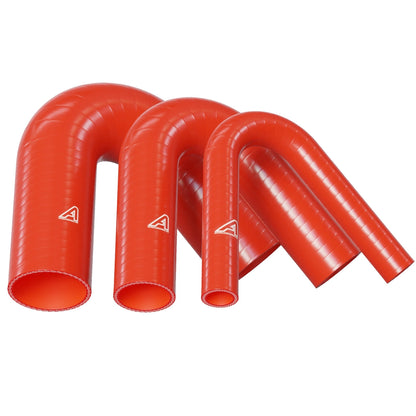

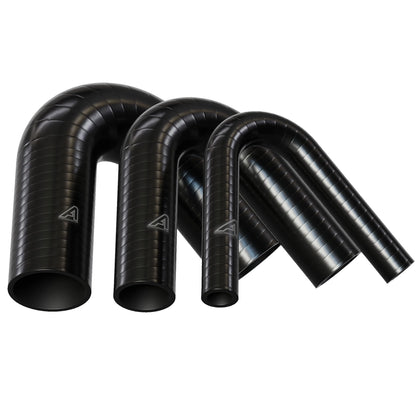

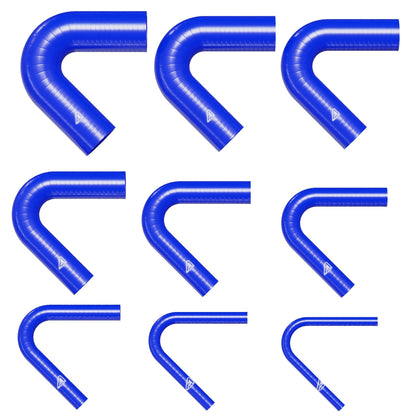

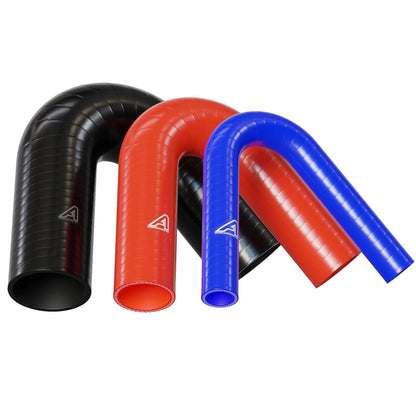

135 Degree Silicone Elbow Hose

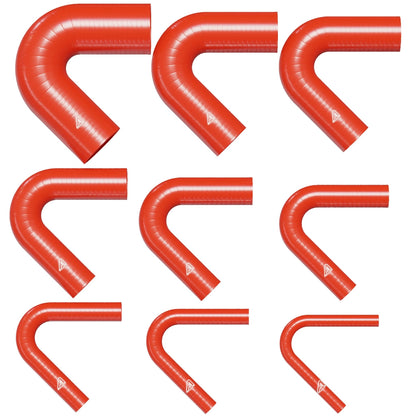

✅ 100mm Leg ✅ 200mm Long ✅ 3 & 4 Ply

Frequently Asked Questions.

Answers to the questions we’re asked most about sizing, fitment and performance.

Still can't find your answer?

What size do I order?

Order by internal diameter, matched to the outside diameter of the metal pipe or stub the elbow slides onto. Measure the pipe itself with vernier callipers, not the hose you are replacing - hose stretches in service and reads a size large. Available in internal diameters from 6mm to 102mm, in black, blue and red.

How long are the legs?

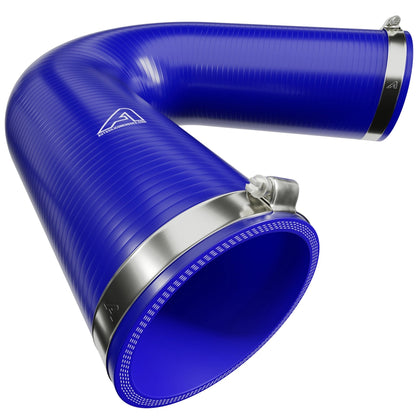

100mm on each side, giving 200mm total length. That leaves plenty of material to trim back to the length you need. If you cut them down, leave at least 25-30mm of straight leg beyond the bend so the clip seats on a supported section - never let a clip end up sitting on the curve, because it will not seal evenly there.

What temperature and pressure will it take?

Continuous service from -50C to +250C, built to SAE J20 R3. Working pressure runs from 12.33 bar on the smallest bore down to 2.8 bar on the largest, with burst pressure from 37 bar down to 8.5 bar across the 6.5mm to 102mm range. For context, a car cooling system typically runs at 1 to 1.5 bar and well under 120C, so there is a substantial margin.

How is it constructed, and how many plies?

A smooth extruded silicone compound inner layer, polyester braid reinforcement, and a durable silicone outer layer that resists heat, ozone and abrasion. Smaller bores are 3 ply and larger bores step up to 4 ply - each size is built with the reinforcement it needs, so you do not have to specify it. Wall thickness runs from 4.5mm to 5.5mm depending on bore.

Can I use it for fuel or oil?

No. This is standard silicone, which is excellent with coolant, water and air but swells and breaks down in contact with petrol, diesel or oil - and that includes breather and catch-can lines, which carry oil mist. For anything with hydrocarbons in it, use our Fuel & Oil range, which has a fluorosilicone liner built to SAE J30 R6.

What is the bend radius?

Bend radius runs from 16mm on the smallest bore to 70mm on the largest. That is the radius the elbow is moulded to, so the bore stays fully round through the bend and flow is not restricted - which is exactly why a moulded elbow beats bending a straight hose round the same corner.
