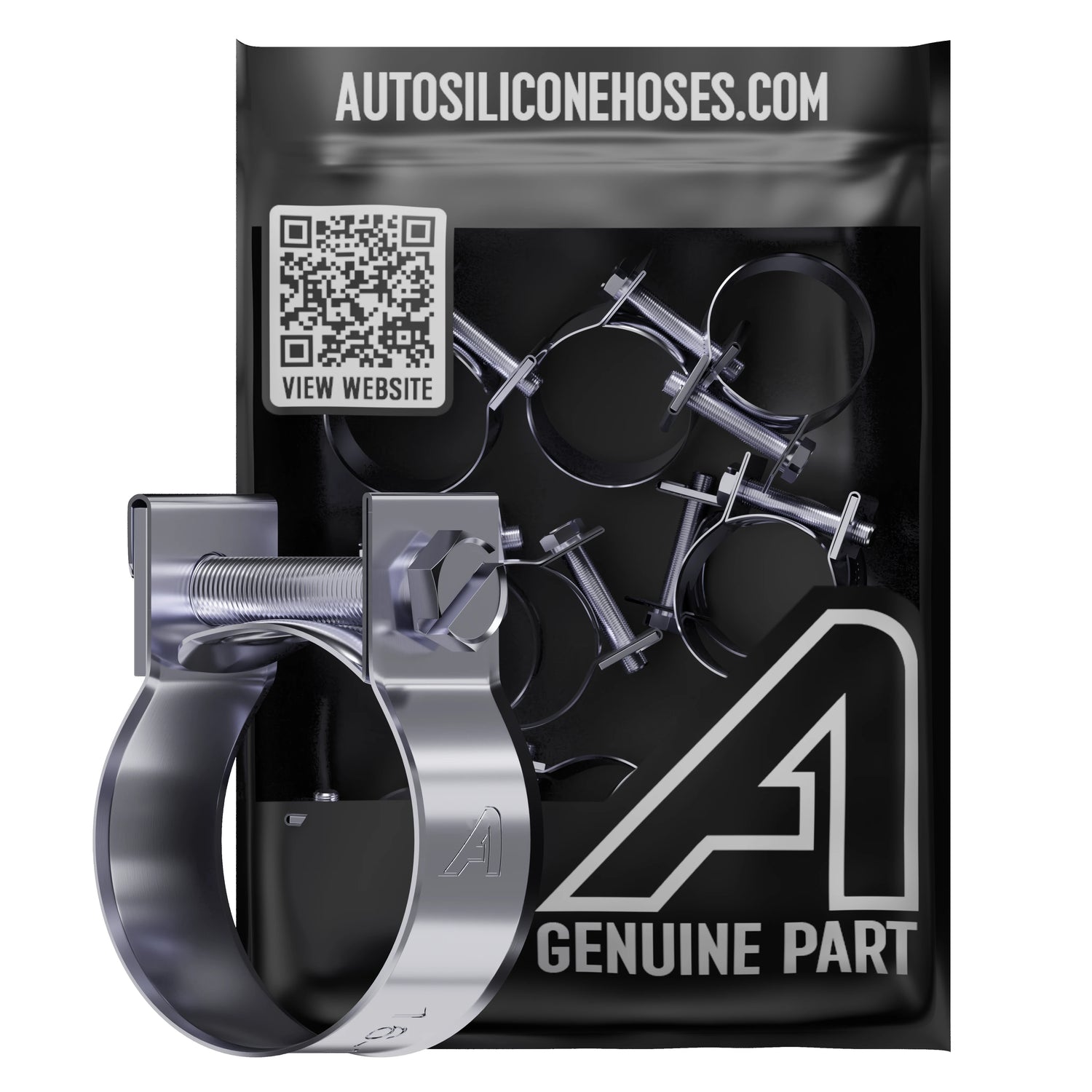

Assorted Mini Hose Clips

Name: Assorted Mini Hose Clips
Brand: Auto Silicone Hoses
SKU: PMCMIX2-ASH
Price: 8.1 GBP
Availability: InStock

PMCMIX2-ASH

£8.10

Delivery/Collection

Collect from Silicone Hose UK

Orders can be collected once you receive your ready-to-collect email.

Address

Silicone Hose UK

HolmeBank Business Park, Station Road
Unit 5
Mirfield WF14 8NA
United Kingdom

Get Directions

Opening hours

Monday	07:00 – 19:00
Tuesday	07:00 – 19:00
Wednesday	07:00 – 18:00
Thursday	07:00 – 18:00
Friday	07:00 – 17:00
Saturday	07:00 – 13:00
Sunday	Closed

Bank holidays may affect our opening hours and delivery times.

Returns

It's OK to change your mind
Return within 30 days for a full refund*. Learn More

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

Specifications

Band Width: 9mm
Band Thickness: 0.6mm
Material: W1 / W4

Size Guide

Clip Range Diameter
7mm - 9mm
8mm - 10mm
9mm - 11mm
10mm - 12mm
11mm - 13mm
12mm - 14mm
13mm - 15mm
14mm - 16mm
15mm - 17mm
16mm - 18mm

Measurements are nominal and may vary slightly.

How to size a clip

Measure over the hose, not the pipe

A clip closes around the outside of the hose once the hose is already on its fitting. That outside diameter is the clip size — the bore the hose runs on is not.

Or work it out from the hose's own figures

If the hose is not to hand, take its internal diameter and add twice the wall thickness — both are listed in that hose's own Size Guide. A 19 mm bore silicone hose has a 4.5 mm wall, so it measures 28 mm across the outside.

Use vernier calipers, keep the largest reading

Set the outer jaws across the widest point of the assembled joint and rotate 60° between readings. Hose is soft and rarely perfectly round, so size to the biggest figure.

Pick the range that spans your figure

Aim for the middle of a clip's range rather than either end. Wound out near its limit a clip has little thread left to bite on; at the bottom of its range it may not open far enough to pass over the hose in the first place.

Size the clip to the hose OD, not the bore. A 19 mm hose does not take a 19 mm clip — with a 4.5 mm wall it measures about 28 mm across the outside. Every figure on this page is the outside diameter the clip closes on.

Assorted Mini Hose Clips

Frequently Asked Questions.

Answers to the questions we’re asked most about sizing, fitment and performance.

Still can't find your answer?

What is in the assorted pack?

A spread of sizes across a single clip type in one box, so the right clip is on the shelf rather than being a trip to the merchant. Available in 2 of each - 22 clips, 5 of each - 55 clips and 10 of each - 110 clips.

Why buy assorted rather than single sizes?

Because you rarely know in advance which size the next job needs. For a workshop, farm or van, having the range on hand is worth considerably more than the price difference.

Are they good value?

Per clip, substantially cheaper than buying the same clips as singles, and the larger boxes are better value again. Singles only make more sense when you know exactly which size you need and will never need the others.

W1 or W4?

Available in W1 Zinc Plated and W4 Stainless Steel. W1 is zinc-plated steel - cheaper, fine for dry indoor use. W4 is stainless throughout, band, housing and screw, which is what you want for weather, coolant, road salt or a marine environment.

What sizes does the box cover?

The full stocked size range for this clip type is included in the box.

How do I choose the right clip from the box?

Size to the outside diameter of the hose once fitted over the pipe, not the bore, and aim for the middle of the clip's adjustment range rather than either extreme. A clip at the end of its travel has almost no thread engaged.
