Gasregler

Unsere Premium-Kollektion von Gasreglern bietet außergewöhnliche Kontrolle und Sicherheit für verschiedene Anwendungen. Diese Regler sind präzise und langlebig konstruiert und gewährleisten eine genaue Gasflusssteuerung in Industrie-, Labor- und Wohnumgebungen. Jedes Modell ist aus hochwertigen Materialien gefertigt, um zuverlässige Leistung zu liefern und strenge Sicherheitsstandards zu erfüllen. Entdecken Sie unser vielfältiges Sortiment, um Regler zu finden, die auf unterschiedliche Drücke, Gasarten und Durchflussraten zugeschnitten sind und alle auf optimale Funktionalität und Zuverlässigkeit ausgelegt sind.

Which regulator do I need for my gas bottle?

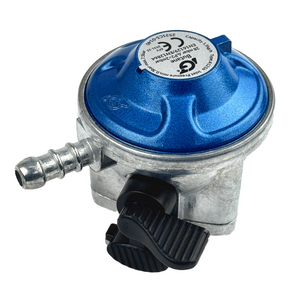

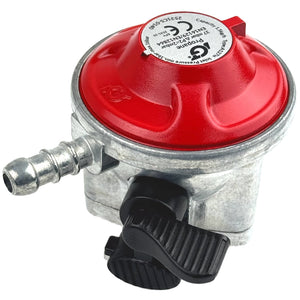

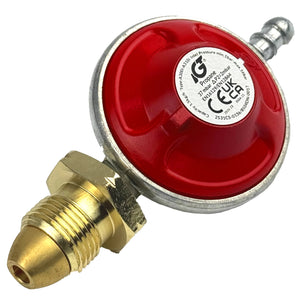

It depends on the gas and the cylinder valve, not on the appliance. Butane cylinders with a 21mm valve take a 21mm clip-on butane regulator at 28mbar. Propane cylinders with a 27mm valve take a 27mm clip-on propane regulator at 37mbar. Older propane cylinders with a threaded POL valve take a screw-on propane regulator at 37mbar. Check the valve on your cylinder before ordering - they are not interchangeable.

What is the difference between butane and propane regulators?
They deliver different pressures because the two gases behave differently. Butane runs at 28mbar, propane at 37mbar, and appliances are jetted for one or the other. Fitting the wrong regulator will make an appliance run badly and, more importantly, unsafely. Propane also works at much lower temperatures than butane, which is why it is the usual choice for outdoor and winter use.

What standard are they built to?
EN 16129, which is the European standard covering pressure regulators for LPG. Buying to a recognised standard matters a great deal with gas equipment - the standard covers the relief mechanism, the materials and the pressure accuracy. We would strongly advise against uncertified regulators regardless of price.

What flow rate do these regulators deliver?
The 21mm butane clip-on is rated at 1kg/h; the 27mm propane clip-on and the screw-on propane regulator are rated at 1.5kg/h. Check the total demand of your appliances against that figure - a regulator that cannot supply enough gas will cause an appliance to run weak or cut out under load, particularly on larger burners or when several are used at once.

What temperature range do they work over?
The 21mm butane clip-on is rated 0C to +50C, the 27mm propane clip-on -10C to +65C, and the screw-on propane regulator -20C to +50C. This is another reason propane is preferred for outdoor and winter work - butane stops vaporising properly as the temperature approaches freezing, so a butane setup can simply stop delivering gas on a cold morning.

How do I connect a regulator to hose?
These have an 8mm (5/16 inch) hose nozzle outlet, which takes a matching LPG-rated hose secured with an appropriate hose clip. Use hose made for LPG - we stock rubber and PVC LPG hose to the relevant standards - and never substitute general-purpose rubber hose. Check the hose for a date code and replace it at the interval marked on it.
