Double Layer Silicone Air Ducting

✅ -70°C to +310°C ✅ 2 Ply Fiberglass ✅ Steel Helix

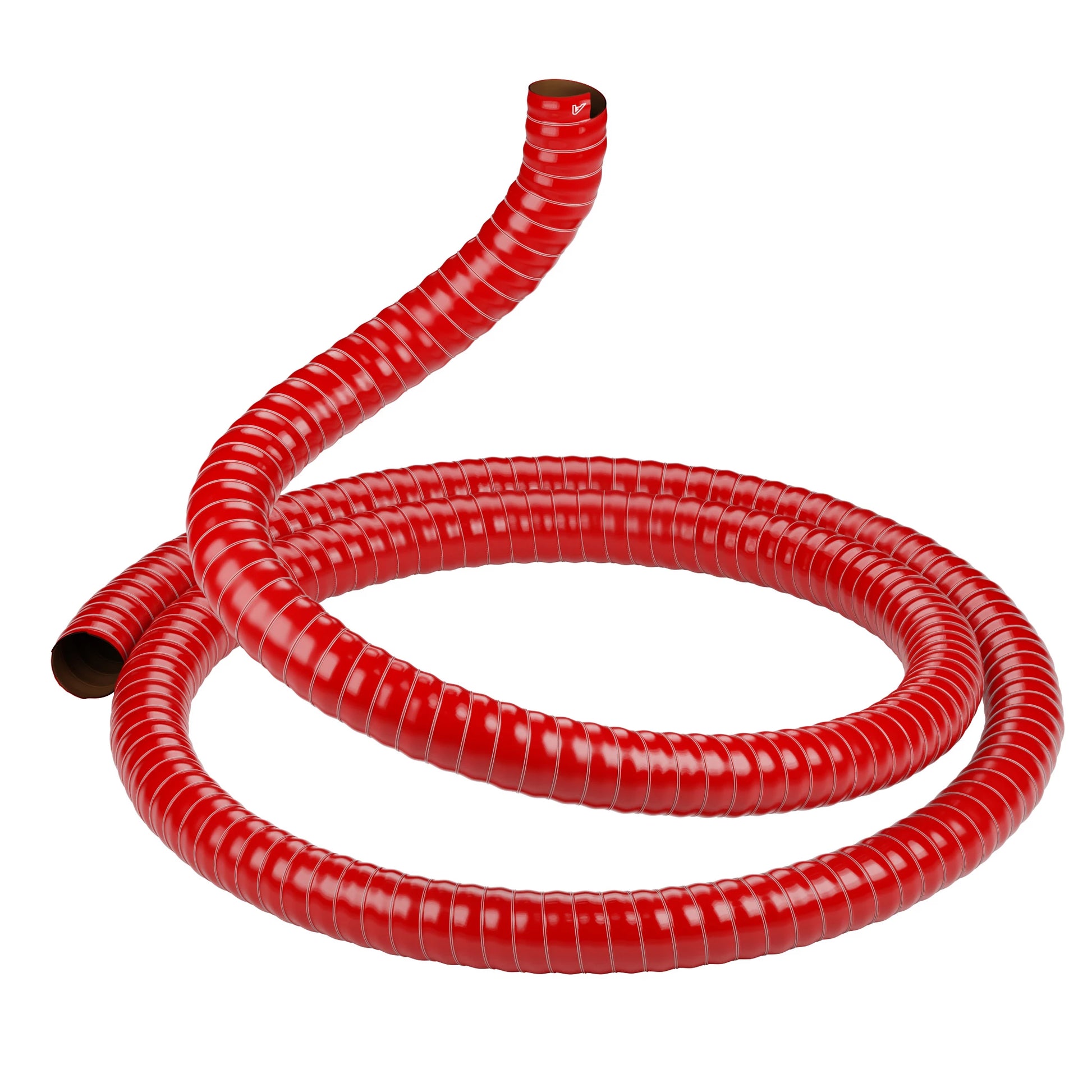

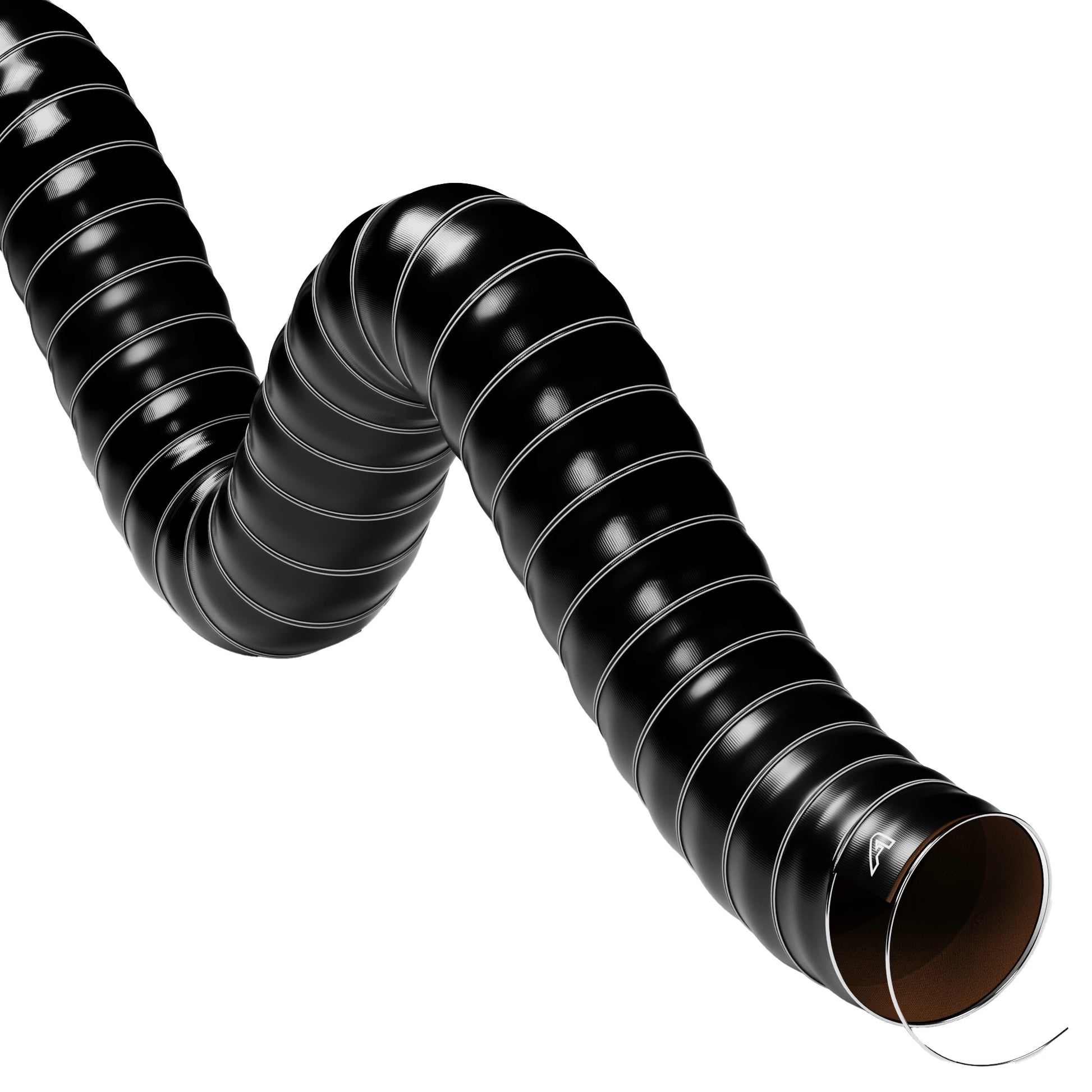

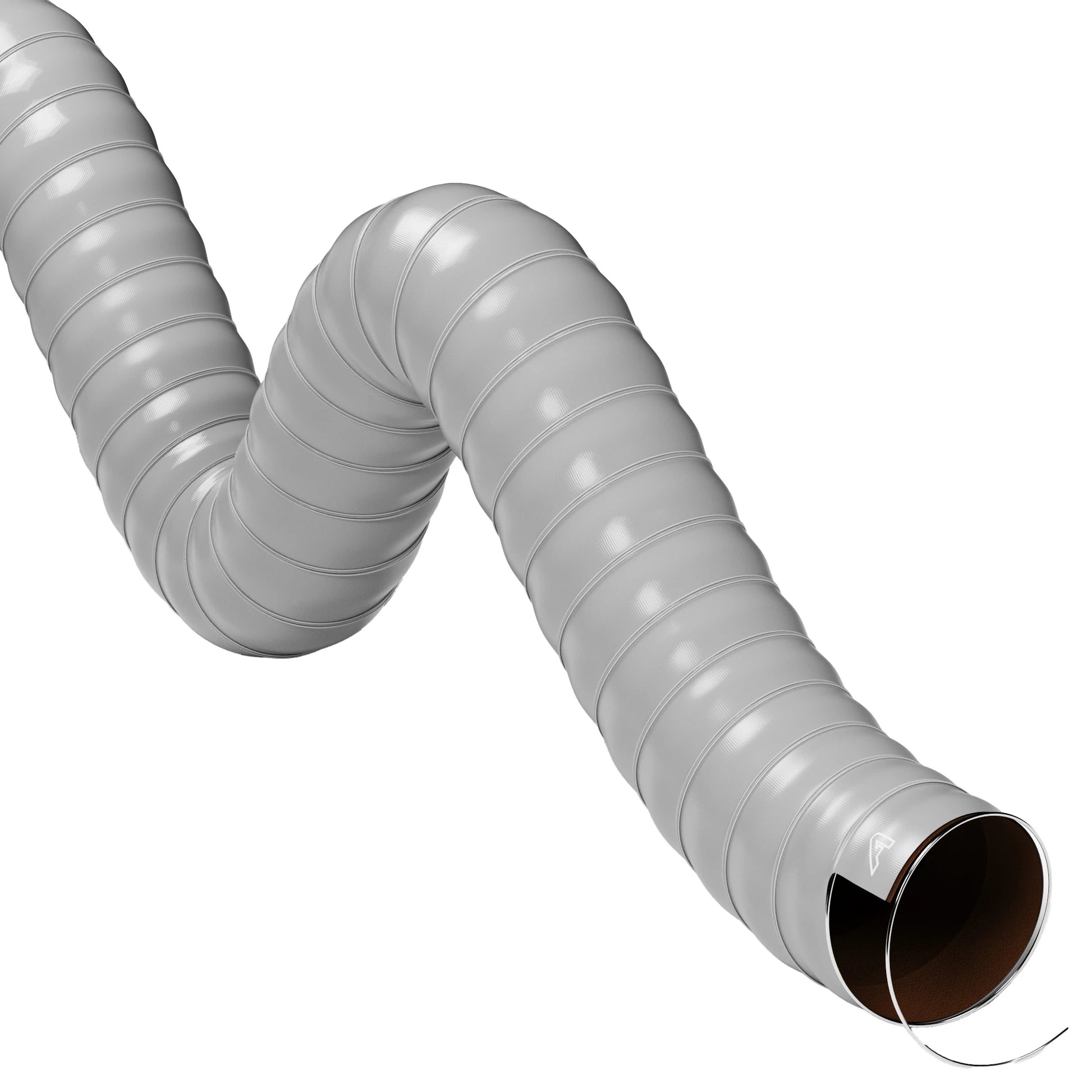

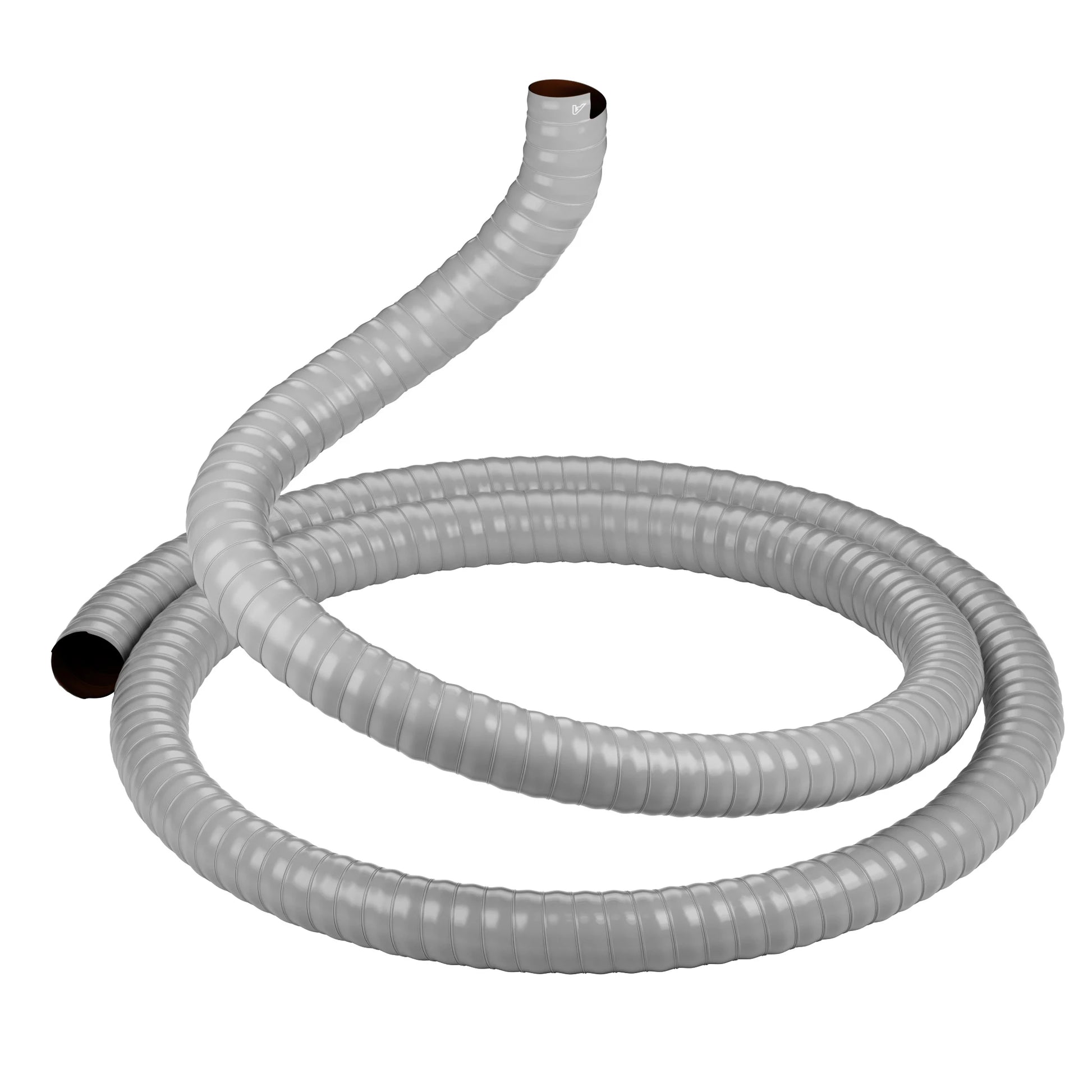

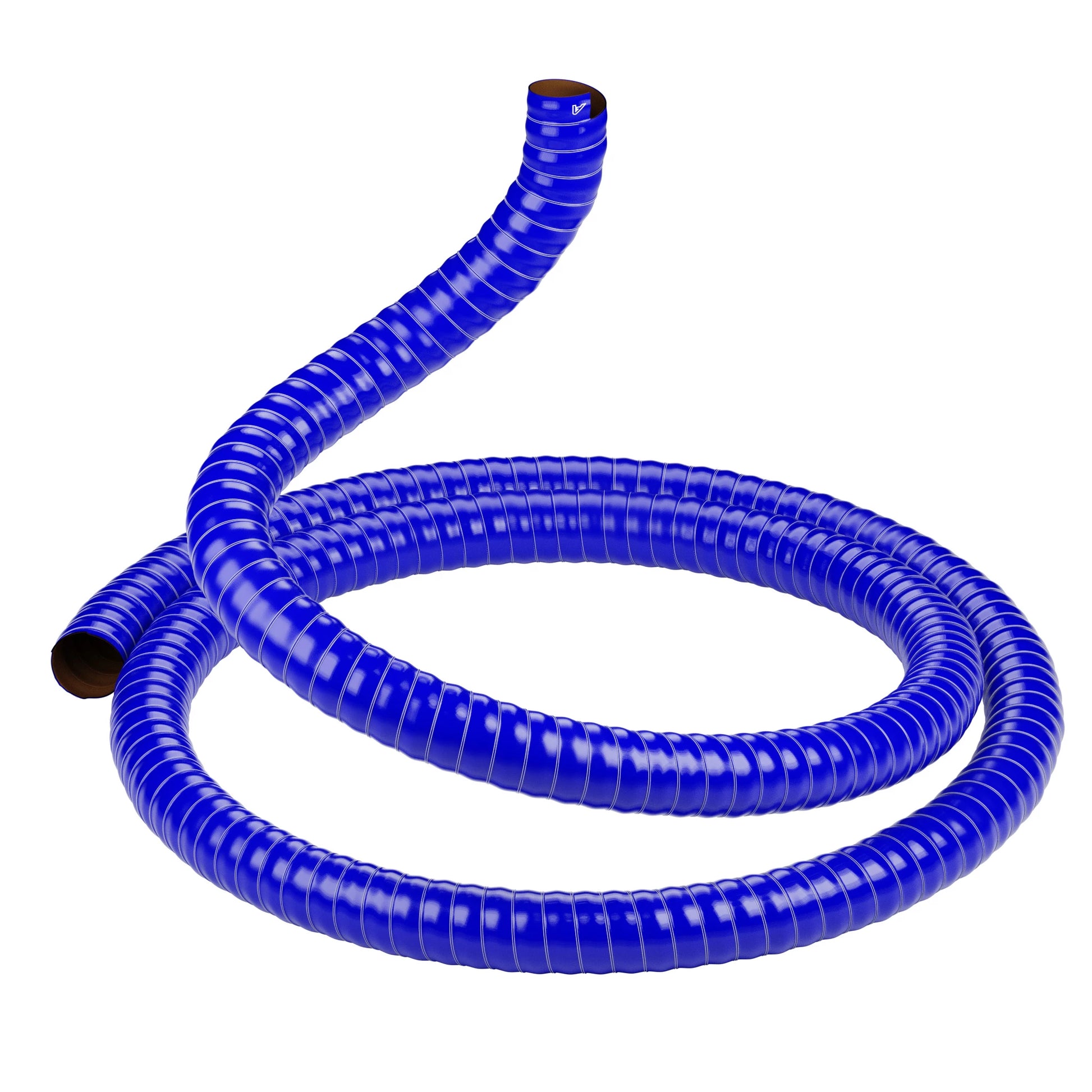

Double Layer Silicone Air Ducting Silicone Hose Auto Silicone Hoses

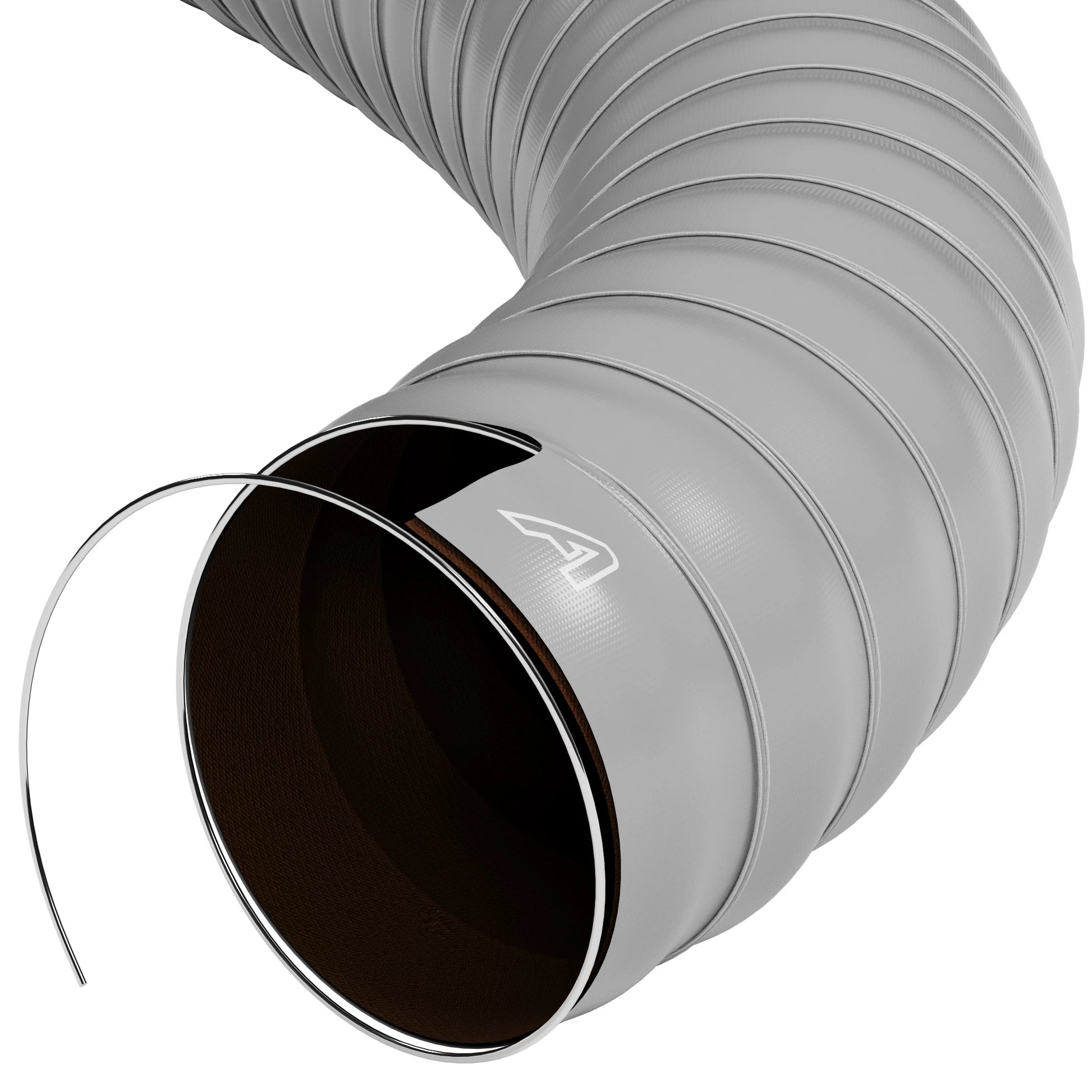

Double Layer Silicone Air Ducting Silicone Hose Auto Silicone Hoses 45mm 1 Metre Grey

Double Layer Silicone Air Ducting Silicone Hose Auto Silicone Hoses 32mm 1 Metre Red

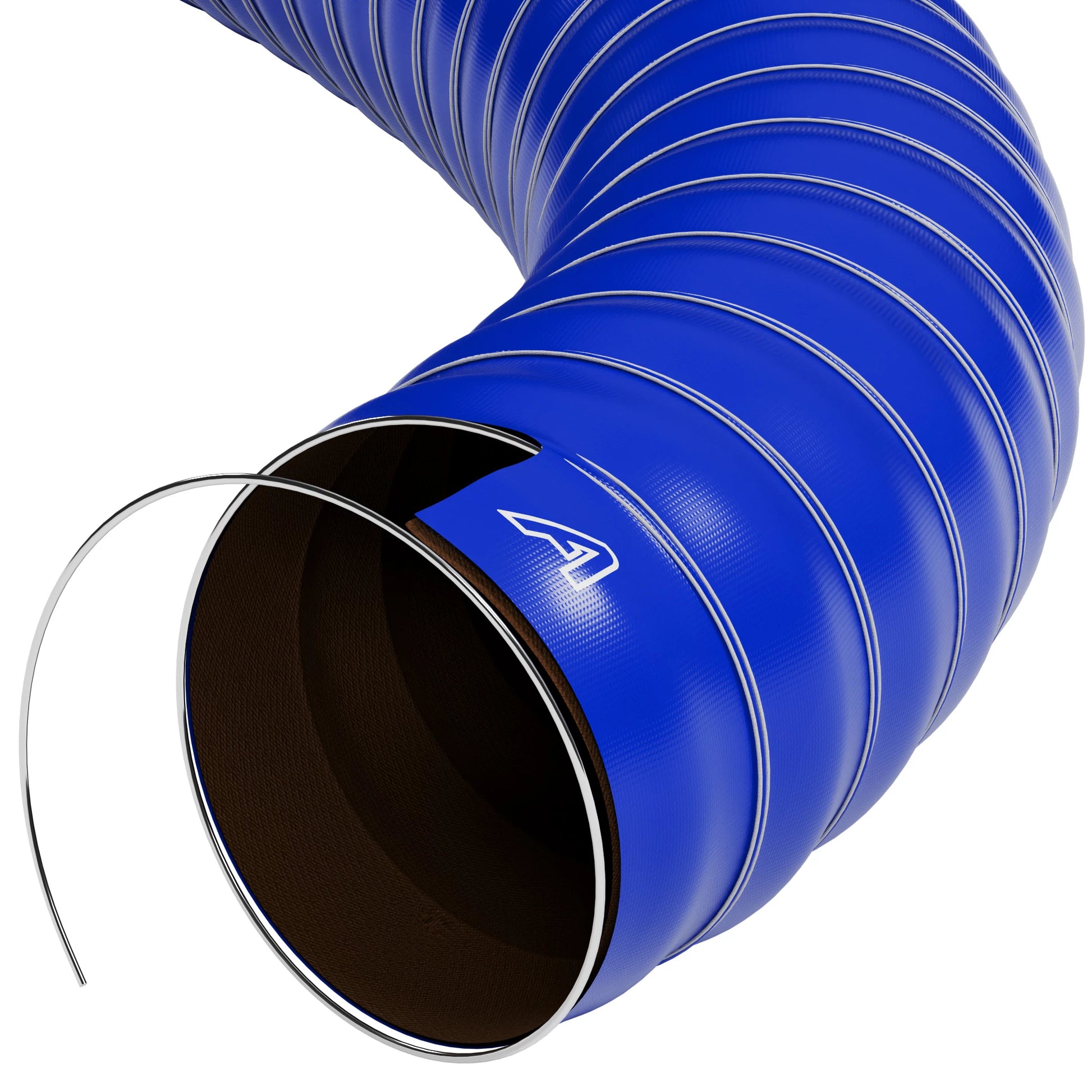

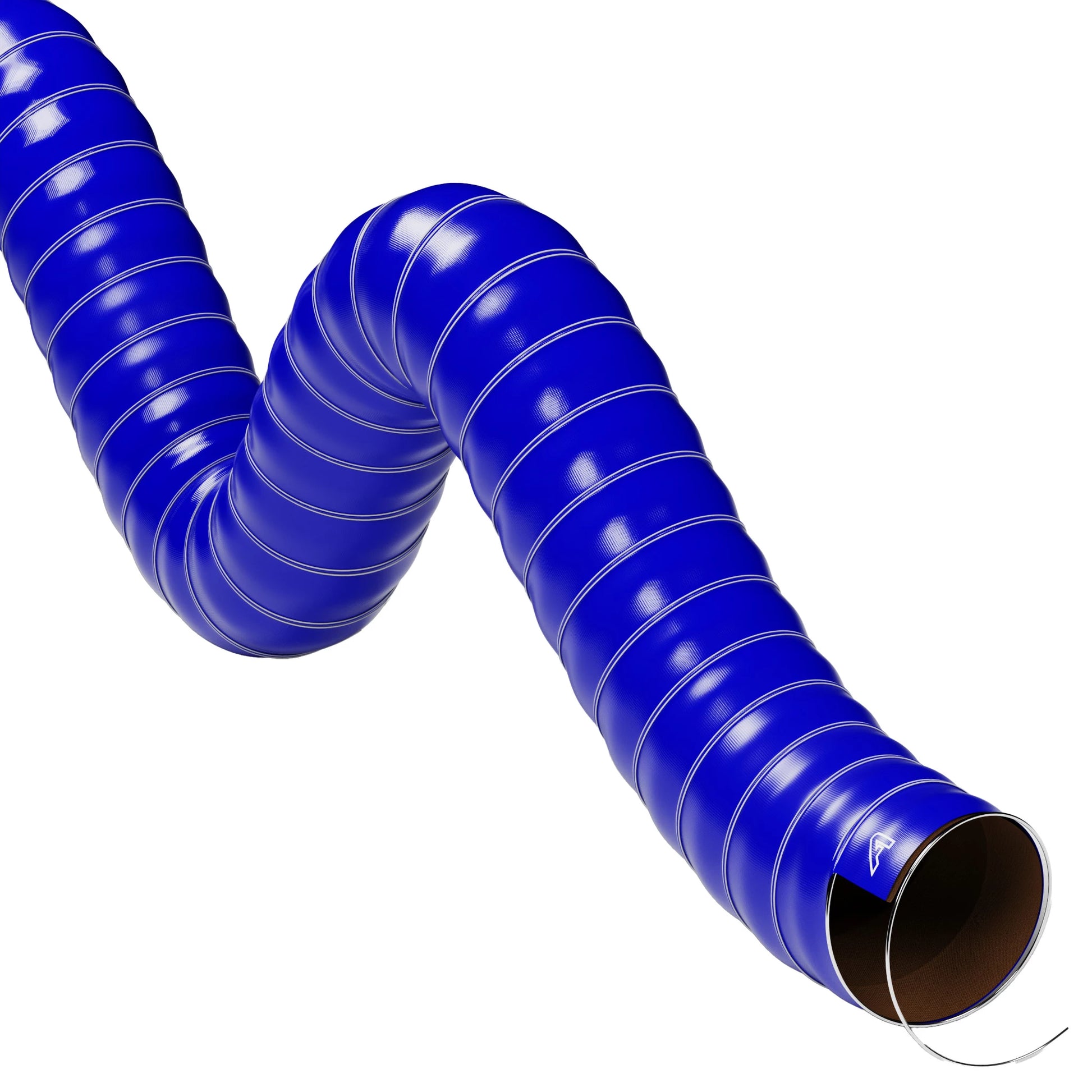

Double Layer Silicone Air Ducting Silicone Hose Auto Silicone Hoses 45mm 1 Metre Blue

Double Layer Silicone Air Ducting

✅ -70°C to +310°C ✅ 2 Ply Fiberglass ✅ Steel Helix

SKU

FKD025-ASH

Brand

Auto Silicone Hoses

Application

High Temperature & Low Pressure

Temperature Range

-60°C to +260°C

Internal Diameter

25mm

Internal Diameter Inch

Outside Diameter

29mm

Outside Diameter Inch

1 1/8"

Main Body Length

1 Metre

Centre Line Radius

Bend Radius

30mm

Number Of Plys

Leg Length

Max Coil Length

4 Metre

Wall Thickness

2mm

Surface Finish

Gloss

Inner Layer Material

Silicone Glass Fibre

Outer Layer Material

Silicone Coated Glass Fiber

Material

Reinforcement

Spring Steel Wire With Glass Fiber Cord

Conforms To

Colour

Black

Bursting Pressure

8.39 Bar

Working Pressure

2.8 Bar

Safety Factor

3 x Working Pressure

Weight

0.19 kg/m

Band Width

Roll Length

Roll Width

Thickness

Tensile Strength

Overall Length

1 Metre

Filter Top Width

Filter Bottom Width

Hose Flat Width

Download Datasheet

Your custom code is here (HTML, JavaScript, CSS, Shopify Liquid)

Colour

Internal Diameter

Length

Colour

QUANTITY:

€18,95

Sale {price}%

€15,79 ex VAT

Spend €40,00 to unlock your first free gift!

ADD HOSE CLIPS & JOINERS.

Selected OD (Outside Diameter):

29mm

Match Hose OD To Clip Size Range

DELIVERED TO YOUR DOOR.

Free standard delivery when you spend £40!

Description

Double Layer Silicone Air Ducting is a high-temperature flexible hose designed for air transfer in automotive, motorsport, marine, and industrial applications. Manufactured from two layers of silicone-coated glass fibre with a steel wire helix reinforcement, the ducting offers outstanding heat resistance, flexibility, and durability. Its double-layer construction provides greater strength and insulation compared to single-layer alternatives, while the smooth inner surface ensures efficient airflow with minimal pressure loss. Lightweight yet robust, this ducting is ideal for hot air transfer, induction systems, and engine bay ventilation where reliability under extreme heat is essential.

Key Features:

Material: Double-layer silicone-coated glass fibre for superior heat resistance.
Reinforcement: Steel wire helix for flexibility and crush resistance.
Construction: Twin-ply wall with smooth inner bore for efficient airflow.
Operating Temperature: Continuous service from -70°C to +260°C, with peaks up to +280°C.
Flexibility: Highly flexible for routing in tight engine bays and confined areas.
Applications: Hot air ducting, induction systems, cooling ducts, and engine bay ventilation.

The double-layer silicone-coated construction ensures outstanding resistance to heat, ozone, and ageing, while the embedded steel wire helix provides flexibility without risk of collapse under suction or tight bends. Its smooth inner bore reduces turbulence and pressure loss, ensuring efficient airflow in high-performance applications. Strong yet lightweight, the ducting is easy to handle, cut, and install, making it suitable for both professional workshops and custom-builds.

Applications include automotive induction and cooling systems, brake cooling ducts, turbocharger air feeds, HVAC ducting, marine engine ventilation, and industrial hot air transfer. Double Layer Silicone Air Ducting is widely used in motorsport, custom fabrication, and engineering projects where high heat resistance, flexibility, and durability are required.

Returns

For further details pertaining to our return policy, kindly refer to our dedicated Returns & Warranties page.We offer 30 day return policy on 99% of our items, some are considered Custom made products (This would include Alloy Joiners, Alloy Connector & Silicone Couplers as these are made specifically for each order and are classed as a 'tailor-made' product). These are non returnable.

For further details pertaining to our return policy, kindly refer to our dedicated Returns & Warranties page.

Gallery

COLLECT IN STORE.

Pickup Available At Silicone Hose UK.

Gewöhnlich fertig in 1 Stunde

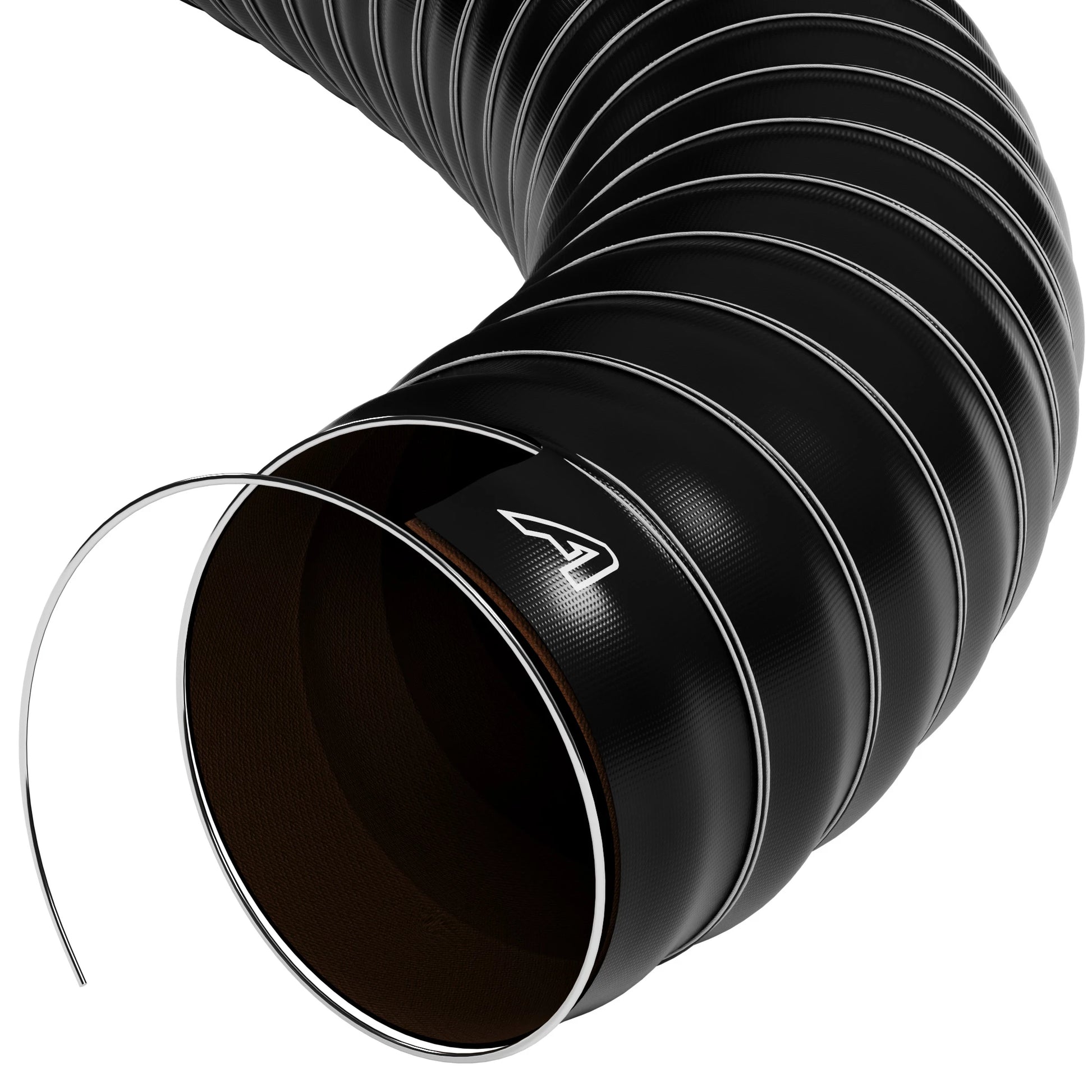

Double Layer Silicone Air Ducting

Internal Diameter: 25mm, Length: 1 Metre, Colour: Black

Silicone Hose UK

Pickup Available, gewöhnlich fertig in 1 stunde

HolmeBank Business Park, Station Road
Unit 5
Mirfield WF14 8NA
Vereinigtes Königreich

+441924496111

BUY NOW. PAY LATER.

SKU

FKD025-ASH

Brand

Auto Silicone Hoses

Application

High Temperature & Low Pressure

Temperature Range

-60°C to +260°C

Internal Diameter

25mm

Outside Diameter

29mm

Main Body Length

1 Metre

Centre Line Radius

Bend Radius

30mm

Number Of Plys

Leg Length

Max Coil Length

4 Metre

Wall Thickness

2mm

Surface Finish

Gloss

Inner Layer Material

Silicone Glass Fibre

Outer Layer Material

Silicone Coated Glass Fiber

Material

Reinforcement

Spring Steel Wire With Glass Fiber Cord

Conforms To

Colour

Black

Bursting Pressure

8.39 Bar

Working Pressure

2.8 Bar

Safety Factor

3 x Working Pressure

Weight

0.19 kg/m

Band Width

Screw Type

Pack Quantity

Band Thickness

Clip Diameter

Download Datasheet

PRODUCT SPEC.

Inside Diameter	Outside Diameter	Wall Thickness	Bending Radius	Coil Weight	Coil Length
25mm	30mm	2.5mm	16mm	0.95kg	4 Metre
32mm	37mm	2.5mm	18mm	1.08kg	4 Metre
38mm	43mm	2.5mm	22mm	1.1kg	4 Metre
45mm	50mm	2.5mm	26mm	1.2kg	4 Metre
51mm	56mm	2.5mm	32mm	1.32kg	4 Metre
57mm	62mm	2.5mm	44mm	1.45kg	4 Metre
63mm	68mm	2.5mm	55mm	1.66kg	4 Metre
70mm	75mm	2.5mm	60mm	2kg	4 Metre
76mm	81mm	2.5mm	65mm	2.12kg	4 Metre
83mm	88mm	2.5mm	75mm	2.36kg	4 Metre
90mm	95mm	2.5mm	82mm	2.44kg	4 Metre
102mm	107mm	2.5mm	90mm	2.84kg	4 Metre
127mm	132mm	2.5mm	105mm	3.84kg	4 Metre
152mm	157mm	2.5mm	125mm	4.16kg	4 Metre
200mm	205mm	2.5mm	150mm	5.98kg	4 Metre

Grest

Very useful

Black Double Layer Silicone Air Ducting

Out with the cardboard and foam and in with the Silicone

The order **** very quickly and I fitted them on my 1977 Citroen 2cv the next day. I thought I would try them as mine were requiring replacement and I saw an article in the 2CVGB magazine by someone who had just replaced his.
Easy to cut and fit once I had worked out the bends required and the air flow is much improved.
The only downside I find is that engine noise inside the car has increased as the old cardboard and internal foam ones absorbed some of the noise.

Great product at a great price

Great product, exactly as described I bought it to replace a tired old fabric duct fitted to my cold air intake system. This fitted on nicely with a jubilee clip and works really well

Excellent Ducting

When I first saw the heater pipe arrangement on a 2CV, I thought they looked a wee bit “hit & miss”, but I hadn’t appreciated that the cardboard tubes were lined with foam.
On the occasional use of our 2CV during the winter, there was not much heat coming onto the driver’s windscreen and yet, the heat exchangers and cable adjustments were all perfect. The foam within the driver’s side screen pipe had folded in on itself, not at the ends but halfway down the pipe. I tried to coax it back into position with a broom handle, but it kept bulging and blocked the flow of air.
I bought two meters of this silicon (double layered, coil wound) heater pipes . One length was 63mm diameter and the other 70mm diameter. The difference to the heater performance is astounding. They are available in red, blue, grey or black. If I were to order again I'd probably opt for grey, but the "red" versions guarantee an extra few horsepower, which (if you own a 2CV) is always welcome!
I have written an article for the 2CVGB Club magazine, recommending this product, so hopefully you'll pick up a few more orders.
Thank you!

1 2 3

Let customers speak for us

from 535 reviews

Prefect

Brian Nash

Flexible Hose Clip Driver

12/04/2025

Good product.

Good product, does the job much better than the old worm types.

Anonymous

T Bolt Hose Clamp

11/26/2025

Perfect

Came next day exactly as described, really good quality and neatly packaged. Will be sure to use this company every time in the future.

Dan Wright

45 Degree Silicone Elbow Hose

11/25/2025

Nice colour ...lol my neighbour asked me to order it for him. He seemed happy with it ...

Sandra

Heavy Duty High Visibility PVC Pole Hose

11/25/2025

It did the job

Excellent range of products and does accommodate the amateur by being able to buy one item. Great website and very easy to use.
Jon Woofheaf

Jonathan Woodhead

Mini Fuel Hose Clip

11/18/2025

45 to 38mm reducer

I bought this reducer to fit my 3.6TDV8 L322, there is no original available and this was the closest match I could find, I needed to shorten it by 25mm and it fitted perfecly.

Willem

Straight Reducing Black Silicone Hose

11/18/2025

Great mix

I ordered a box then ordered4 more! Very handy to have different sizes and loads of variations

Del Wheeler

Silicone Hose Off Cut Mixed Box

11/16/2025

Black ducting

Very good quality, **** very promptly. I would use this company again.

Donald

Black Corrugated PVC Reinforced Flexible Ducting

11/13/2025

Exactly what it said on the tin

Mr James Anderson

Rubber Wire Reinforced Radiator Hose

11/13/2025

Great item

Useful bit of kit . Good quality .

Andrew Good

42mm OD Large Hose & Pipe Ratchet Cutter

11/13/2025

Top notch clamp

Easy to use and very secure, 10mm socket makes sure of applying enough force to tighten.

Willem

T Bolt Hose Clamp

11/12/2025

Very handy👍

Chris

Silicone Hose Off Cut Mixed Box

11/11/2025

Silicone Hose.

Excellent Hose very flexible I just added a support because of the length but all great. First class service.

Sally Taylor

Continuous Silicone Hose - Blue

11/10/2025

A one metre silicon tube, **** intact.

Bernard Hunkin

1 Metre Straight Silicone Hose

11/10/2025

great flexy kit

spot on kit and great staff who exchanged item with better dimensions,many thanks,will use again.

Customer Dave

Straight Reducing Black Silicone Hose

11/09/2025

What customers think about the store

Specializes in hoses, clips, and automotive parts with fast delivery. While products are generally high quality with competitive pricing, customer service response times vary. Some delivery issues occur with third-party couriers, though most orders arrive prom...

AI-generated from customer reviews.

Delivery Hose Quality Service

FREQUENTLY ASKED QUESTIONS.

Can Silicone Hoses Be Used For Fuel/Oil?

If you intend to use silicone hoses for fuel or oil applications, it is recommended to use Fluorolined Silicone, hoses are specifically designed to offer enhanced resistance to a wider range of chemicals, including fuels and oils.

Will Silicone Hose Stretch?

Silicone hoses are known for their flexibility and elasticity, which allows them to stretch to some extent. However, the degree to which a silicone hose can stretch depends on various factors, including its design, thickness, and the specific type of silicone used in its construction. We advise that our hoses can stretch a maximum of 3mm on the diameter.

Can Silicone Hoses Be Used For Coolant?

Yes, silicone hoses are commonly used for coolant applications. Silicone hoses are well-suited for coolant systems in various industries, including automotive, marine, and industrial applications.

How Long Do Silicone Hoses Last?

The lifespan of silicone hoses can vary depending on several factors, including the quality of the material, the specific formulation of the silicone, the environmental conditions, and the type of application. In general, silicone hoses are known for their durability and longevity, and they often outlast traditional rubber hoses in many applications.

What is the temperature rating of silicone hoses?

The temperature rating of silicone hoses is typically in the range of -60°C to +180°C (-76°F to 356°F). Silicone hoses are known for their ability to withstand a wide range of temperatures, making them suitable for various applications in industries such as automotive, aerospace, and manufacturing. It's important to note that specific products may have slightly different temperature ratings, so it's advisable to refer to the manufacturer's specifications for precise details on a particular silicone hose.
