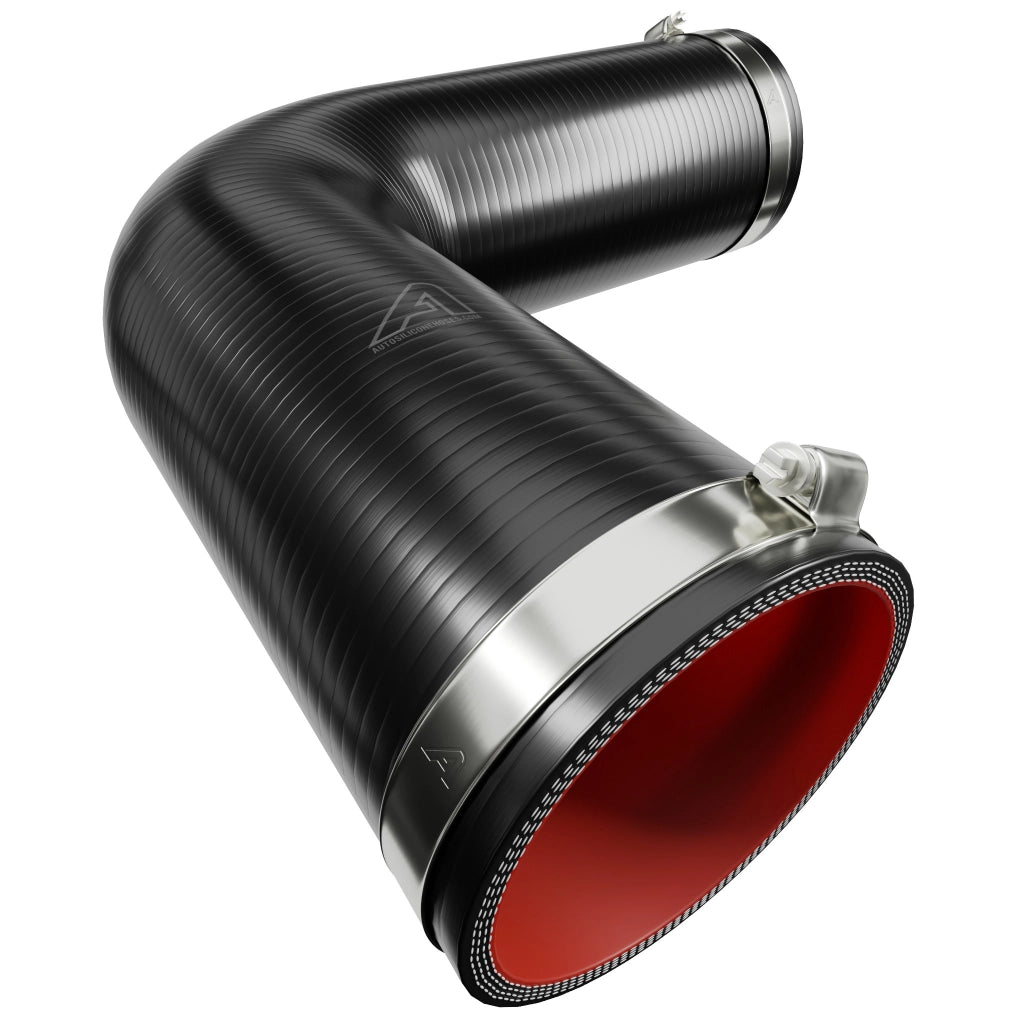

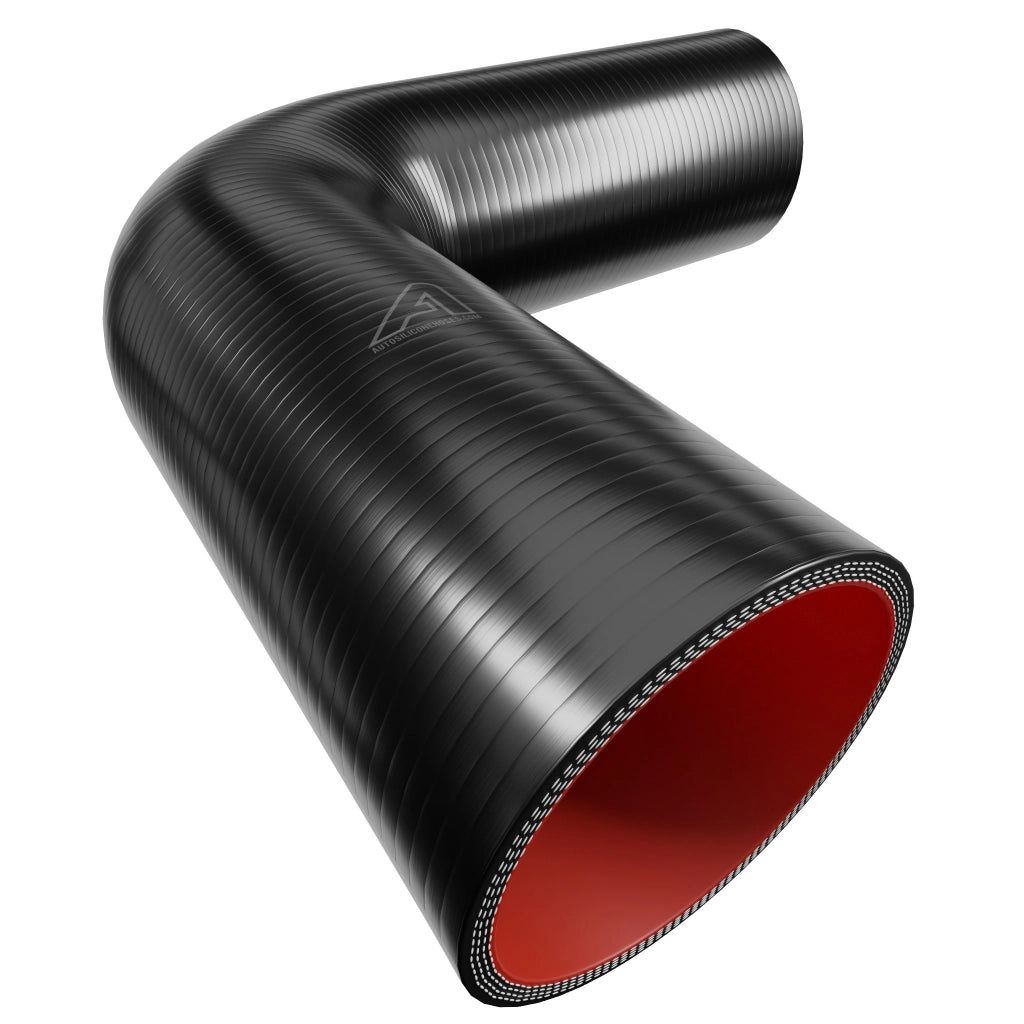

Silicone 90° Fuel & Oil Elbow Hose is a high-quality multi-ply hose designed for hydrocarbon transfer in automotive, marine, agricultural, and industrial environments. Manufactured with a smooth extruded flouro silicone inner layer, reinforced by polyester braids, and finished with a durable silicone outer layer, this elbow hose offers superior resistance to fuels, oils, and vapours. The 90-degree bend and 150 mm legs provide an efficient and secure connection for angled routing in confined systems, reducing the need for extra joints and couplers. Operating continuously from -50°C to +250°C and conforming to SAE J30 R6 standards, the hose maintains performance under extreme temperatures, vibration, and pressure cycling. With a broad size range from 6.5 mm to 102 mm internal diameter, it is suitable for a wide spectrum of fuel and oil transfer applications.

Key Features:

• Inner Layer: Smooth extruded flouro silicone compound for excellent fuel and oil resistance.

• Reinforcement: Strong polyester braids for structural integrity and pressure stability.

• Outer Layer: High-grade silicone for heat, ozone, and abrasion resistance.

• Construction: 3–4 ply with 150 mm leg lengths for secure installation.

• Operating Temperature: -50°C to +250°C (peak +250°C).

• Internal Diameter Range: 6.5 mm to 102 mm.

• Working Pressure: 12.33 bar (small bore) down to 2.8 bar (large bore), size dependent.

• Bursting Pressure: Up to 37 bar (approx. 3x working pressure).

• Bend Angle: 90° with 150 mm extended legs.

• Standard: SAE J30 R6 compliant.

The flouro silicone lining provides chemical compatibility with hydrocarbons, oils, and fuel vapours, ensuring reliable service where conventional silicone hoses may degrade. Polyester reinforcement delivers both strength and flexibility, maintaining pressure stability while supporting ease of installation. The silicone outer layer resists weathering, ozone, and heat exposure, ensuring durability across continuous-use and high-stress environments. With working pressures up to 12.33 bar in smaller diameters and burst ratings up to 37 bar, the hose offers a dependable safety margin in both automotive and industrial settings. Its precise 90° bend simplifies routing in restricted spaces while maintaining flow efficiency, making it ideal for both performance upgrades and heavy-duty applications.

Applications include automotive fuel and oil systems, turbocharger and intercooler oil returns, marine fuel transfer, motorsport fuel and lubrication setups, industrial hydrocarbon handling, and agricultural machinery. The silicone 90° fuel and oil elbow hose is also widely used in custom engineering projects requiring chemically resistant, heat-stable, and durable angled hose connections. Keywords: silicone 90-degree elbow hose, flouro silicone reinforced elbow, high-temperature fuel and oil hose, SAE J30 R6 elbow hose, silicone fuel bend, industrial hydrocarbon hose.
