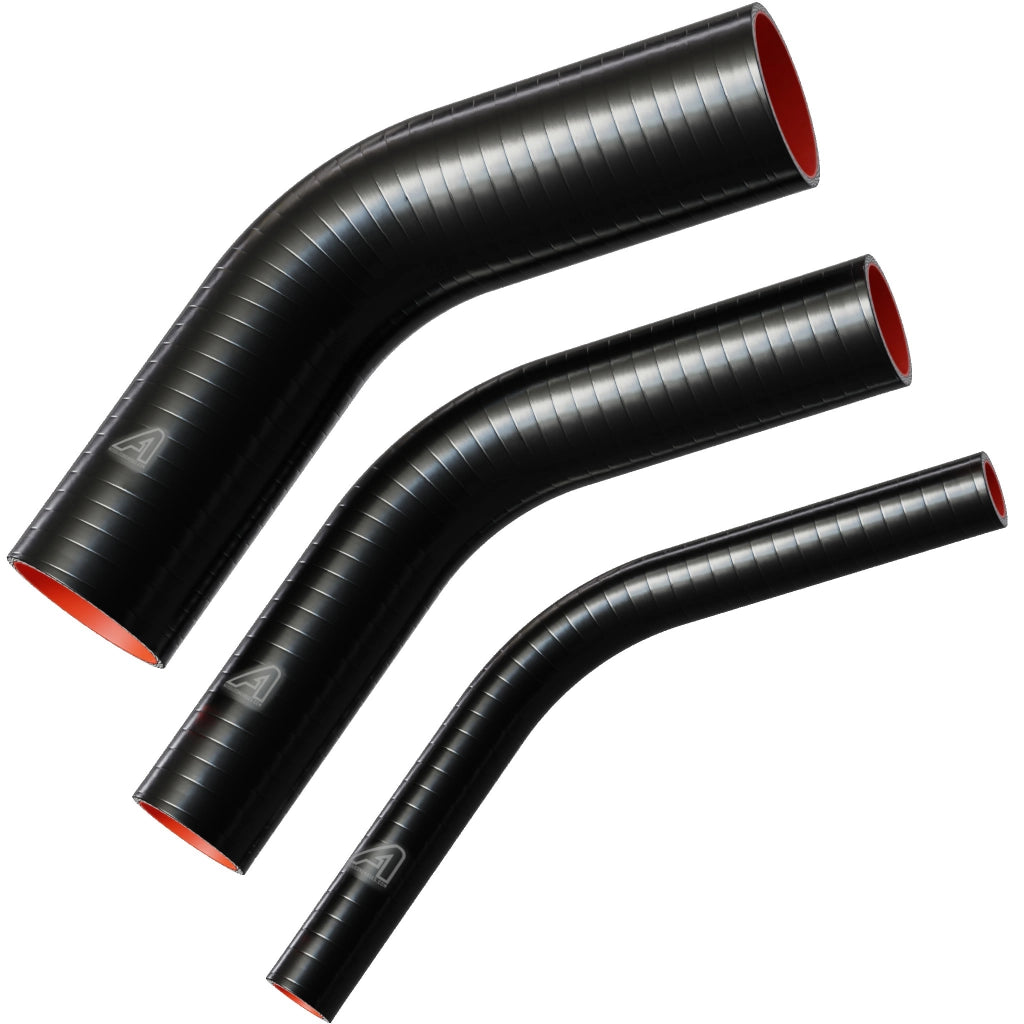

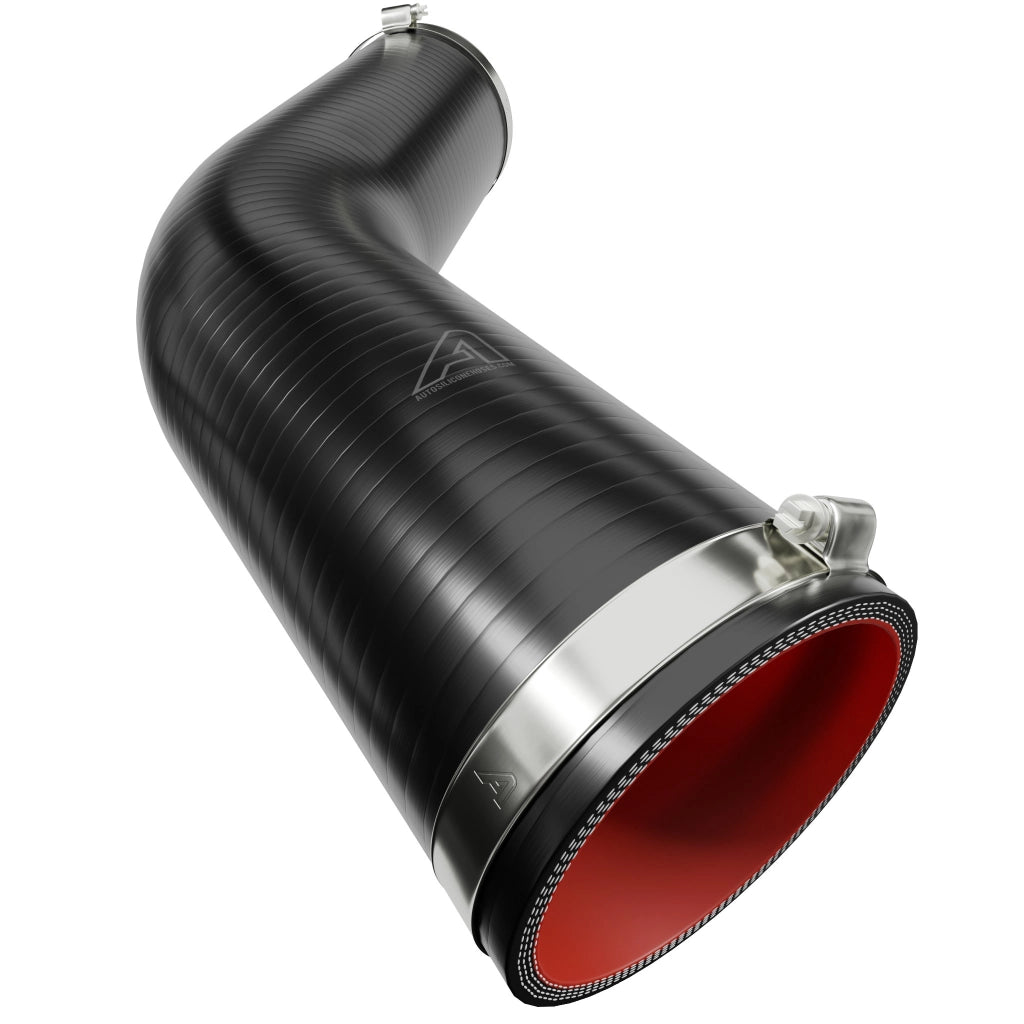

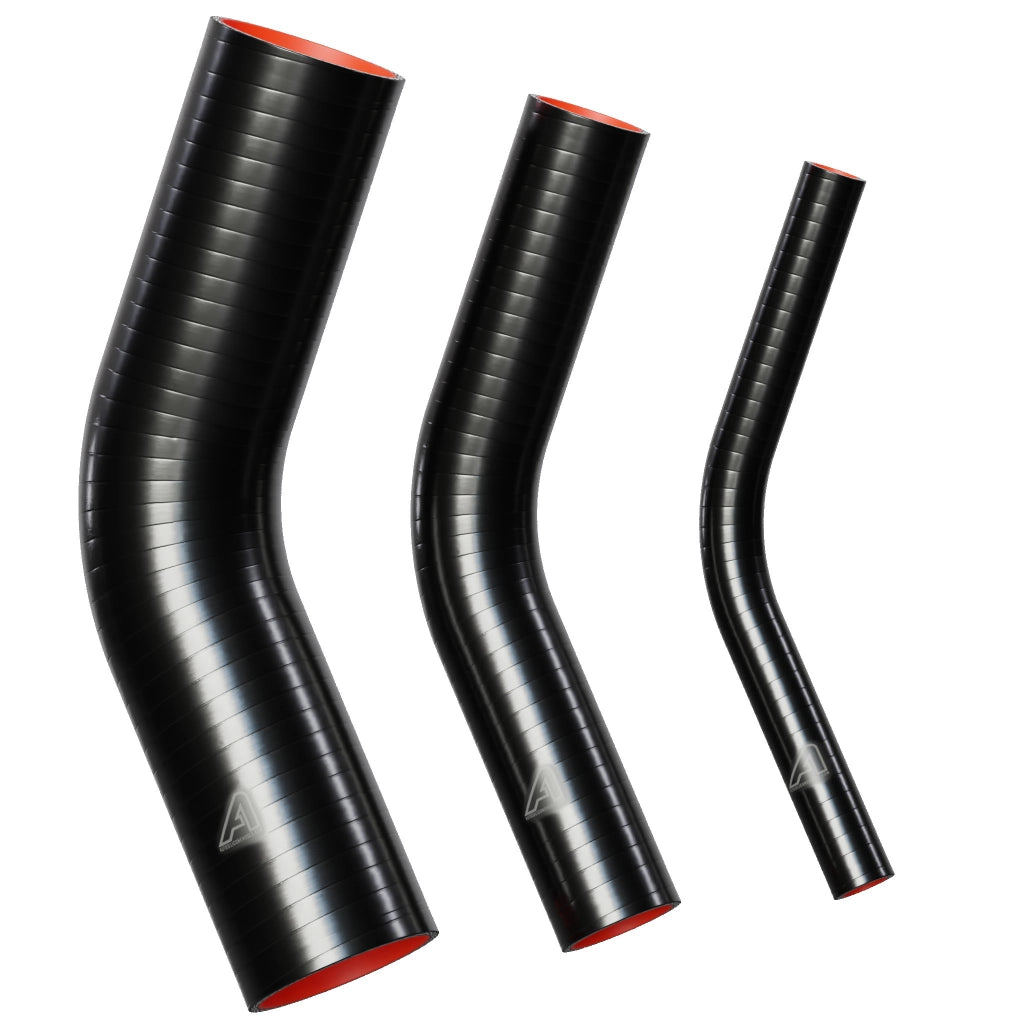

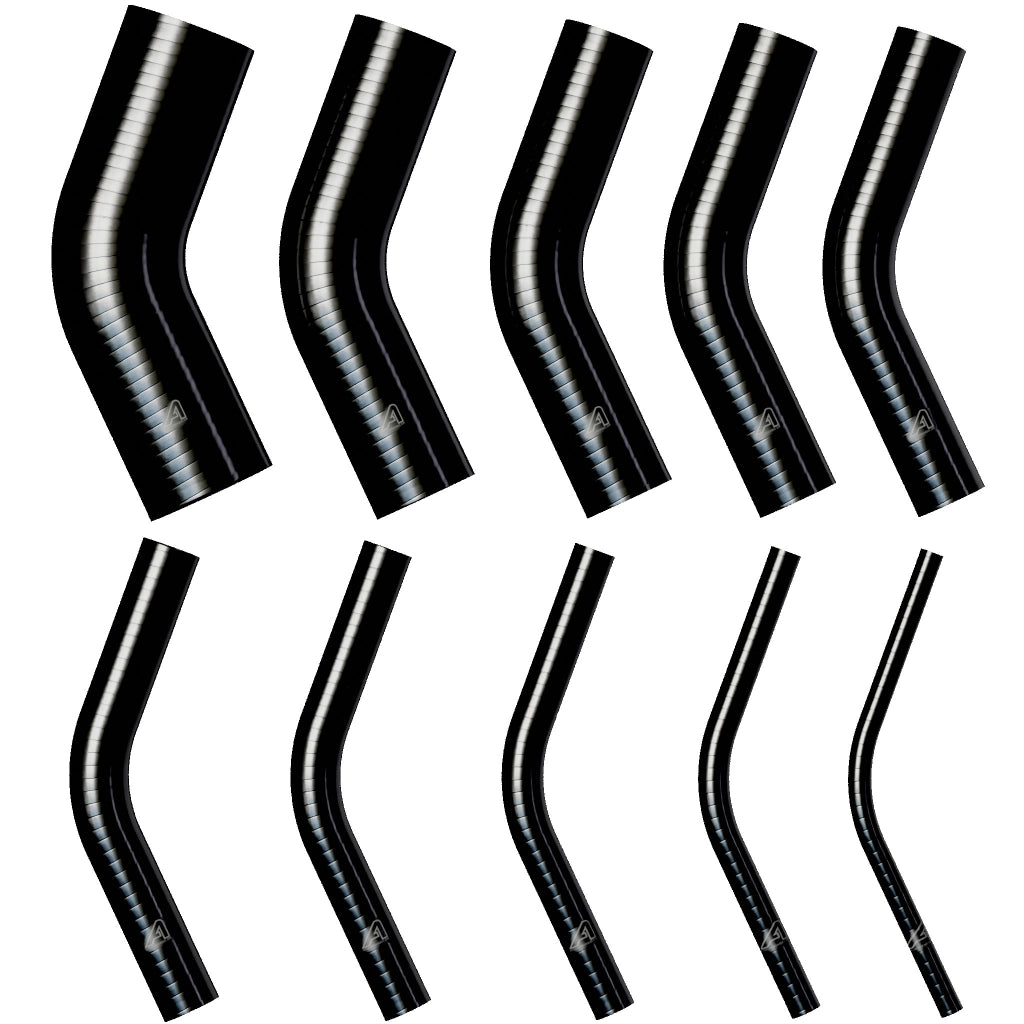

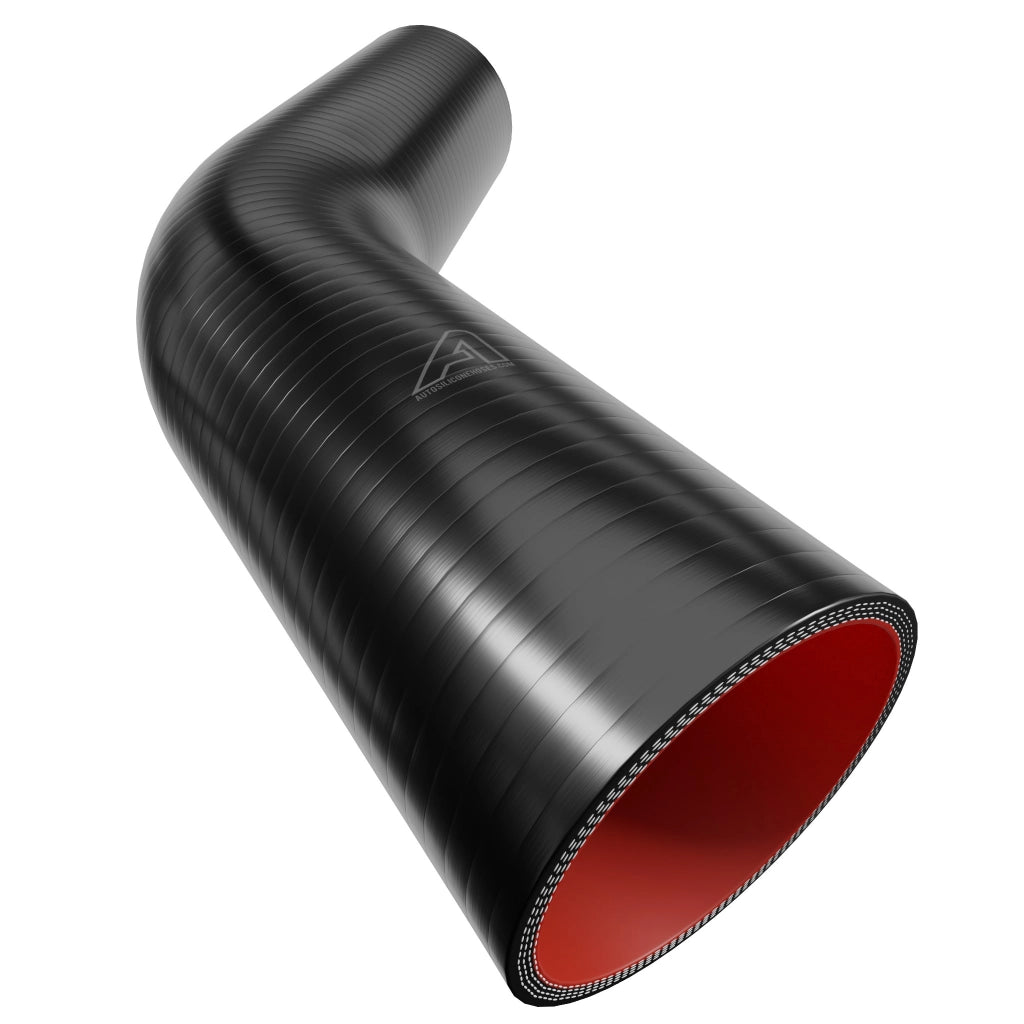

Silicone 45° Fuel & Oil Elbow Hose is a high-performance solution for fuel, oil, and hydrocarbon transfer in automotive, marine, and industrial applications. Built with a smooth extruded flouro silicone compound inner lining, reinforced with strong polyester braids, and finished with a durable silicone outer layer, the hose provides excellent chemical resistance, flexibility, and long service life. Designed with a precise 45-degree bend and 150 mm legs, the elbow offers secure and efficient routing for angled connections in complex systems. Capable of continuous operation from -50°C to +250°C, this hose meets SAE J30 R6 standards, ensuring compatibility with a wide range of fuels and oils while maintaining stability under demanding conditions. Available in diameters from 6.5 mm up to 102 mm, the elbow hose delivers versatile performance for both light-duty and heavy-duty environments.

Key Features:

• Inner Layer: Smooth extruded flouro silicone compound for resistance to fuels, oils, and vapours.

• Reinforcement: Polyester braids providing strength and pressure resistance.

• Outer Layer: High-quality silicone for durability and heat resistance.

• Construction: 3–4 ply design with 150 mm leg length for secure connections.

• Operating Temperature: -50°C to +250°C (peak +250°C).

• Internal Diameter Range: 6.5 mm to 102 mm.

• Working Pressure: 12.33 bar (small bore) down to 2.8 bar (large bore), size dependent.

• Bursting Pressure: Up to 37 bar (typically 3x working pressure).

• Bend Angle: 45° with 150 mm leg length per side.

• Standard: SAE J30 R6 compliant.

The flouro silicone lining ensures excellent compatibility with fuels, oils, and hydrocarbon vapours, making it ideal where standard silicone may degrade. Polyester reinforcement maintains pressure integrity while supporting flexibility for easy installation. The silicone outer layer provides resistance to heat, ozone, and long-term environmental exposure, ensuring durability under continuous use. With its 45° angled design, this hose facilitates smooth routing in restricted or angled systems, reducing the need for additional fittings. The multi-ply structure provides robust mechanical strength, while working pressures from 12.33 bar to 2.8 bar and burst ratings up to 37 bar offer a strong margin of safety. This balance of flexibility, strength, and chemical resistance ensures reliable long-term service across a wide range of installations.

Typical applications include automotive fuel and oil connections, marine fuel lines, turbo oil returns, motorsport fuel and breather systems, and industrial hydrocarbon handling. The hose is also suited to agricultural machinery, heavy-duty maintenance, and custom engineering projects requiring durable angled connections. Keywords: silicone 45-degree elbow hose, fuel and oil silicone bend, flouro silicone reinforced elbow, high-temperature elbow hose, SAE J30 R6 silicone elbow, hydrocarbon transfer hose.
